Let’s say you're using Facebook, and you receive a notification when someone likes your post. Have you ever wondered how that notification reaches you? That's where the Notification System comes in. It’s the mechanism that ensures you receive that notification instantly, without any delay.
A Notification System acts like a digital messenger. Just like a mail carrier delivers a letter to your doorstep, the Notification System ensures that the right message—whether it’s an email, SMS, or app alert—reaches you at exactly the right time.
A Notification System is crucial because of the following reasons:
| Reason | Description |
|---|---|
| Timely Alerts | Whether it's a flight delay or a sale on your favorite app, timely notifications ensure that users don’t miss out on critical information. |
| Engagement | It helps keep users engaged by instantly informing them about important updates, like messages, likes, or comments. |
| User Experience | A well-designed notification system enhances user experience by delivering relevant and personalized alerts, making the interaction with the app more meaningful and efficient. |
Before we write down all the functional requirements, we need to understand what clients and users are.
Clients are the apps or services that want to send notifications (like a social media app or an online store). Users are the people who receive these notifications.
| Requirement | Description |
|---|---|
| Send Notifications | Our system should allow different clients to send notifications, which the Notification Service will then deliver to the users. The notifications will be of 3 types - SMS, Email, and App notification. |
| Rate Limiting | The system should control the flow of notifications to ensure users don't receive too many at once, preventing notification overload. |
| Prioritization & Validation | The system should prioritize important notifications, like OTPs, over less urgent ones, such as promotional messages. Along with that, it should do some user and content validation. |
| User Preferences | Our system should be able to accommodate user preferences. For example, if a user sets the preferences to get only 3 promotional notifications in a month, they should receive no more than 3 promotional notifications. |
| Requirement | Description |
|---|---|
| Availability | The system should have 99.99999% uptime to ensure users receive time-sensitive notifications like OTPs and alerts. Downtime could lead to missed notifications, security risks, and a poor user experience. |
| Low Latency | The system must deliver notifications, like OTPs, almost instantly to prevent delays that could frustrate users or disrupt their experience. |
| Scalability |
The system should support global clients and users, with traffic coming from multiple geographic regions. The system should handle 1000 clients and 50 million daily users, managing up to 100 million notifications daily, ensuring smooth operation even during peak times. |
| Reliability | Notifications must be delivered accurately and consistently, with no loss or duplication. |
| Flexibility | The system should support different notification types and adapt to user preferences. |
Now, let's take reasonable assumptions:
- Total number of clients: 1000
- Daily Active Users (DAU): 50 million
- Monthly Active Users (MAU): 400 million
Notifications are generated by 1000 clients based on different events. Each client sends notifications for a variety of reasons, such as:
- Order updates
- Promotions
- Security alerts
- Other events
Each client generates 50,000 notifications per day.
=1000 clients × 50,000 notifications = 50 million notifications per day
To determine the write requests per second: =50 million / (24 × 60 × 60) = 578 write requests per second
Thus, the system handles 578 write requests per second.
In this notification system, there are no explicit read requests made to retrieve data. Instead:
- Clients add notifications to the system.
- Users receive them through delivery mechanisms such as:
- Push notifications
- SMS
- Emails
Since notifications are delivered directly, there are no traditional "read" requests from users or clients in this flow.
We are storing 3 types of data:
According to our throughput estimation, we create 50 million notifications per day.
The distribution is as follows:
- 30% are SMS
- 40% are Email
- 30% are Push notifications
- SMS Notification: 500 bytes per notification
- Email Notification: 5 KB per notification
- Push Notification: 1 KB per notification
- SMS (30%) : 0.3 x 50 million x 500 bytes = 7.5 GB/day
- Email (40%): 0.4 x 50 million x 5 KB = 100 GB/day
- Push (30%) : 0.3 x 50 million x 1 KB = 15 GB/day
=122.5 GB/day x 365 days x 10 years
= 447 TB
- Total users: 400 million
- Size per user entry: 200 bytes
=400 million x 200 bytes/user
= 80 GB (one-time storage)
- Total users: 400 million
- Size per user preferences entry: 500 bytes
=400 million x 500 bytes/user
= 200 GB (one-time storage)
| Data Type | Storage Requirement |
|---|---|
| Notification Data | 447 TB |
| User Info Data | 80 GB |
| User Preferences Data | 200 GB |
By memory, we mean cache memory size.
Accessing data from database takes a long time, but if we want to access it faster, we use cache.
The amount of cache memory required every day can simply be taken as 1% of the daily storage
= 0.01 X 122.5 GB = 1.22 GB / day.
The memory size should also scale as our system grows.
Network / Bandwidth estimation tells us how much data flows in and out of our system per second.
Incoming data in a day is ultimately saved in storage.
- Data stored in a day = 122.5 GB/day
- Incoming data per second:
122.5 GB / (24 × 60 × 60) = 1.42 MB/s
Assuming 15% of notifications are filtered out, 85% are delivered to users.
- Total delivered notifications:
85% of 122.5 GB = 104.125 GB/day - Outgoing data per second:
104.125 GB / (24 × 60 × 60) = 1.21 MB/s
Let's dive into the communication process when clients send a notification and understand exactly what's happening.
When a client sends all the necessary information to the Notification System, it uses an API call. This is how computers typically communicate with each other—through APIs.
For this communication, we will use a REST API. Here are the technical details:
This tells the server what action to perform. Since we are creating a new notification, we use the POST method.
This tells the server where to perform that action. Since we are sending a notification, we will use the following endpoint:
/v1/notifications
- v1 means version 1. It is a good practice to version your APIs.
If you want to create a new user account, you would use the POST method and send the request to the following endpoint:
/v1/users
- The action → What to do? → POST
- The target → Where to do it? → /v1/users (endpoint)
We have told the Notification System to send a notification, but we haven't provided the details of the notification itself. This information is sent in the request body:
{
"userId": "The unique identifier of the user who will receive the notification",
"from": "The sender of the notification (e.g., 'UPS', 'Facebook', 'Instagram')",
"message": "The content of the notification (e.g., 'Your order has been shipped')",
"type": "The type of notification (e.g., 'email', 'SMS', 'push')",
"priority": "The priority level of the notification (e.g., 'high', 'medium', 'low')",
"timestamp": "The time when the notification should be sent"
}Now, let's start with a very basic flow where different clients (like social media apps or e-commerce platforms) need to send notifications. They send the notification to the Notification System, which then sends it directly to users.
Now, let's discuss two flows—one for iOS and another for Android. Here are the steps for both. The important point to understand is that while the first three steps are common, the last three steps differ between iOS and Android.
Instead of having the Notification System handle all types of notifications together, it’s better to use specialized services that handle platform-specific tasks—one for iOS and another for Android, and so on.
Our new design breaks this down further:
- The Notification Handler Service will take care of the first three steps.
- The last three steps will be handled by either the iOS Delivery Service or the Android Delivery Service.
- Similarly, we can use specialized services for other notification types as well (e.g., SMS, email).
If we tried to build our own notification services—like an iOS or Android Delivery Service—we’d face several challenges:
- Suppose we need to send a push notification to iOS and Android users. To do this, we’d need to set up connections to:
- Apple Push Notification Service (APNs) for iOS users.
- Firebase Cloud Messaging (FCM) for Android users.
- This means building and maintaining different integrations since each service has its own unique API.
- Example: For sending SMS, we’d need to connect with a telecom provider like AT&T or Vodafone, which involves a separate setup.
- Basically, each provider has different protocols and fees, which adds complexity.
- Say we collect user emails and phone numbers to send notifications. Under GDPR (General Data Protection Regulation), we’re responsible for securing this data.
- If a user no longer wants notifications, they have the right to request deletion of their data.
- Our system should be able to handle that request and process it efficiently.
- Example: If we send promotional emails, CAN-SPAM law requires that each email includes an easy way to unsubscribe.
- This means we’d need to build functionality that allows users to:
- Opt-out of emails.
- Track those who unsubscribed.
- Ensure we don’t send them future emails.
- Building and maintaining your own notification infrastructure (APIs, servers, partnerships with telecom providers, etc.) is expensive.
- Costs include:
- Development
- Operations
- Monitoring
- Maintenance
- Compliance with legal/regulatory standards (GDPR, CAN-SPAM for emails).
This is why, instead of building our own in-house iOS Delivery Service, Android Delivery Service, and others, we rely on third-party (3P) services that specialize in these tasks:
- APNs (Apple Push Notification Service): Handles the technical complexity for iOS notifications.
- FCM (Firebase Cloud Messaging): Integrates with Google’s network, making it easier to manage Android notifications.
- Twilio for SMS: Instead of setting up our own connections to telecom providers, Twilio manages the telecom integrations, making SMS delivery smoother.
- Mailchimp for Email:
- Handles compliance (like unsubscribe features).
- Has built-in systems to prevent spam, reducing the work needed on our side.
These services are experts in their fields and can handle the notification delivery process far more efficiently and reliably than an in-house solution could.
- Different Clients (Apps or services) send notifications to the Notification System.
- Notification System processes and forwards notifications to the correct 3P delivery service.
- 3P Services deliver notifications to the correct user devices.
Now, let's dive deeper into the Notification System. Let's write down all the tasks that are being handled by it.
The Notification System receives a large volume of requests from different clients, but not all notifications are equally important.
For example:
- A notification about a security breach or transaction alert needs to be delivered immediately.
- A marketing notification may not be urgent.
To prevent notification spamming, the system must ensure users aren't overwhelmed by too many messages in a short period.
Example:
- A user subscribed to multiple e-commerce websites shouldn't receive hundreds of notifications within an hour.
- This can lead to user frustration and potential churn.
Users may have different preferences for the types of notifications they want to receive and how they receive them.
Example:
- A user may prefer push notifications for urgent updates.
- A user may want emails only for newsletters.
Note:
- Rate limiting manages frequency.
- Filtering manages relevance.
- Rate limiting controls the number of notifications.
- Filtering ensures users only receive notifications they care about.
The system needs to support multiple delivery methods, such as:
- In-App notifications
- SMS
- Emails
- Push notifications
If a single server is handling all of these tasks, we encounter several issues:
- If the server fails, the entire system goes down.
- We need multiple servers with load balancing for redundancy.
- Storing data on a single server is risky.
- If the server crashes, data is lost.
- We should use databases for reliable storage.
- A single server handling everything will slow down as the load increases.
- Solution: Break tasks into specialized Microservices:
- Validation Service
- Prioritization Service
- User Preferences Service
By introducing multiple servers with load balancing and a database, our design improves.
Next, we will further enhance this design by introducing Microservices, each handling specific tasks such as:
- Prioritization
- Validation
- User Preferences Handling
- And more...
Let's make changes to our previous design to add two services that validate and prioritize the notifications, respectively.
- We have introduced an API Gateway before our services. An API Gateway is like a traffic controller that routes requests to the correct services.
- We’ve also introduced a UsersInfo DB, which stores user information like username, email, and phone number.
- Client sends notifications to the API Gateway.
- API Gateway routes the request to the Validation Service.
- Validation Service uses UsersInfo DB to:
- Retrieve user information (username, email, and phone number).
- Validate the notification details.
- If the notification information doesn’t match the UsersInfo DB, it is filtered out.
- Validated notifications are sent to the Prioritization Service via a load balancer, which:
- Organizes notifications by priority.
- Ensures critical notifications (e.g., OTPs) are sent first.
- Prioritized notifications are forwarded to 3P Services (Third-Party Services) such as:
- APNs (Apple Push Notification Service)
- FCM (Firebase Cloud Messaging)
- Twilio
- Mailchimp
- Notifications are delivered to the user's devices.
Now that we've taken care of validation and prioritization in our design, let's see how we can incorporate our second functional requirement: rate limiting notifications to users.
Rate limiting is essential to prevent users from being overwhelmed by too many notifications at once. For example, if a user has already received multiple promotional notifications in a short period, our rate limiter will delay or discard additional promotional messages.
Below is the updated flow incorporating rate limiting:
- Client sends notifications to the API Gateway.
- API Gateway routes that request to the Validation Service.
- Validation Service:
- Uses UsersInfo DB to fetch user details.
- Validates the username, email, and phone number.
- If the notification details do not match the UsersInfo DB, it is filtered out.
- The validated notification is sent to the Prioritization Service via a load balancer, which:
- Organizes notifications by priority.
- Ensures critical notifications (e.g., OTPs) are sent first.
- Prioritized notifications reach the Rate Limiter, which:
- Checks the frequency of notifications for each user.
- If a user has already received a certain number of notifications within a set time, additional notifications are delayed or discarded.
- Notifications are then forwarded to third-party services (3P Services) like:
- APNs (Apple Push Notification Service)
- FCM (Firebase Cloud Messaging)
- Twilio (for SMS)
- Mailchimp (for emails)
- Notifications are finally delivered to the user's devices.
This rate limiting mechanism ensures a balanced and user-friendly notification experience.
Now that we’ve integrated validation, prioritization, and rate limiting into our design, let’s introduce the User Preference Service to satisfy our third functional requirement.

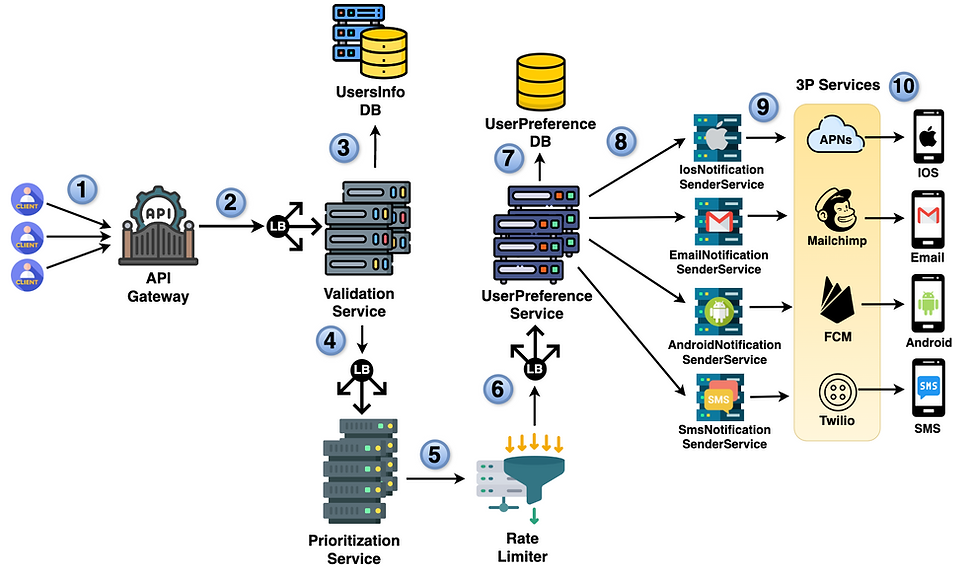

User preferences play a crucial role in ensuring that users receive only the notifications they want. For example, a user might opt to receive only email notifications and limit the number of promotional messages per month. The User Preferences Service helps us respect these choices and tailor the notifications accordingly.
- Client sends notifications to the API Gateway.
- API Gateway routes the request to the Validation Service.
- Validation Service uses UsersInfo DB to get user information and validates the username, email, and phone number.
- If the information in the notification doesn’t match what’s in the UsersInfo DB, the notification is filtered out.
- The validated notification reaches the Prioritization Service via a Load Balancer, which organizes notifications by priority.
- Critical notifications like OTPs are sent first.
- Prioritized notifications then reach the Rate Limiter, which checks the frequency of notifications for each user.
- If a user has already received a certain number of notifications within a set time, additional notifications are delayed or discarded.
- Rate-limited notifications are routed to the User Preferences Service.
- User Preferences Service interacts with the User Preferences DB to retrieve each user’s preferences.
- It checks if the notification aligns with these preferences (e.g., preferred channels, opted-out types).
- If a notification doesn’t match the user’s preferences, it is filtered out.
- Notifications are then forwarded to 3P Services like APNs, FCM, Twilio, or Mailchimp for delivery.
- Finally, the notifications are delivered to the user’s devices.
In our current design, the UserPreference Service is directly sending notifications to various third-party (3P) services, which is not ideal.
- The primary responsibility of the UserPreference Service is to filter notifications based on user preferences, not to manage their delivery.
- Sending different types of notifications to different devices should be handled by a dedicated service.
To manage the delivery of notifications to users via 3P services, we introduce the NotificationSender Service. This service fulfills our requirement of handling notification delivery.
If we use a single service for all notifications, there would be several drawbacks:
-
Different Protocols and Requirements
- Each notification type (SMS, email, push) has unique protocols and formatting needs.
- SMS uses telecom networks via APIs like Twilio, while email interacts with servers through services like Mailchimp.
- Managing all these varied requirements in one service would be complex and inefficient.
-
Lack of Parallel Processing
- A single service cannot efficiently process different notification types (e.g., SMS, email, push) at the same time.
- If SMS and email demand spikes while push notifications remain low, the service could become overwhelmed, leading to delays.
To address these issues, we introduce multiple services for each type of notification. The modified flow works as follows:
-
Client Sends Notification Requests
- The client sends a notification request to the API Gateway.
-
API Gateway Routes Request
- The API Gateway forwards the request to the Validation Service.
-
Validation Service Verifies User Information
- The UsersInfo DB is queried to fetch user details.
- It validates:
- Username
- Phone number
- If the notification data doesn’t match UsersInfo DB, the notification is filtered out.
-
Prioritization Service Orders Notifications
- The load balancer forwards validated notifications to the Prioritization Service.
- This service ensures critical notifications (e.g., OTPs) are sent first.
-
Rate Limiter Controls Notification Frequency
- The Rate Limiter checks the frequency of notifications per user.
- If a user has received too many notifications in a set time:
- Additional notifications are delayed or discarded.
-
UserPreference Service Applies Preferences
- The UserPreference Service queries the UserPreference DB to check user preferences.
- Notifications that don’t match user preferences (e.g., opted-out types) are filtered out.
-
Notification Sender Services Handle Delivery
- The filtered notifications are forwarded to the appropriate Notification Sender Service:
- EmailNotificationSenderService for emails
- SmsNotificationSenderService for SMS
- PushNotificationSenderService for push notifications
- The filtered notifications are forwarded to the appropriate Notification Sender Service:
-
Notifications Are Sent to Third-Party Services
- The Notification Sender Services forward notifications to the respective 3P services, such as:
- APNs for iOS push notifications
- FCM for Android push notifications
- Twilio for SMS
- Mailchimp for emails
- The Notification Sender Services forward notifications to the respective 3P services, such as:
-
Final Delivery to User Devices
- The respective 3P service delivers the notification to the user’s device.
This new design ensures scalability, efficiency, and reliability in handling different types of notifications.
In our current design, the flow starts with Prioritization followed by Rate Limiting, and then User Preferences. At first glance, this might seem like a logical order, but it’s actually inefficient for the following reasons:
Prioritizing notifications first means we are sorting all incoming notifications, including ones that may ultimately be discarded later due to rate limits or user preferences. This wastes resources by prioritizing notifications that might never be delivered.
✅ Solution: Move Prioritization Service to the end.
We should ideally place the Rate Limiter before validation and all other services. By performing Rate Limiting first, we ensure that only the allowed number of notifications per user is processed further, avoiding unnecessary validation for notifications that will ultimately be discarded due to limits.
✅ Solution: Move Rate Limiter to the beginning.
- Client sends notifications to the API Gateway.
- The API Gateway forwards the notification request to the Rate Limiter, which checks if the user has exceeded the allowed notification quota within a given timeframe.
- The Rate Limiter ensures that users are not overwhelmed by too many notifications.
- If a user exceeds the limit, the excess notifications are either delayed or discarded.
- If the notification is within limits, it proceeds to the next step.
- Notifications that pass the rate limit check are forwarded to the Validation Service, which retrieves user details from the UsersInfo DB.
- The Validation Service checks the notification’s details (e.g., username, email, phone number) against the UsersInfo DB.
- If the information doesn’t match, the notification is filtered out.
- Otherwise, it is sent to the next step for user preference filtering.
- The notification is sent to the UserPreference Service, which retrieves user-specific preferences from the UserPreference DB.
- This step ensures that the notification aligns with the user’s preferences (e.g., opted-in channels, opted-out types).
- If the notification doesn't match the user's preferences, it is filtered out.
- Notifications that match the user’s preferences are then passed on to the Prioritization Service, which organizes them by priority.
- This ensures that critical notifications, like OTPs or security alerts, are processed and delivered first.
- Based on the notification type (Email, SMS, iOS push, Android push), the prioritized notifications are routed to the correct Notification Sender Service (e.g.,
EmailNotificationSenderService,IosNotificationSenderService, etc.). - The specialized Notification Sender Services forward the notifications to the respective 3P services:
- APNs for iOS
- FCM for Android
- Twilio for SMS
- Mailchimp for emails
- Finally, the notifications are delivered to the user’s devices.
Currently, after the Prioritization Service organizes notifications by urgency (such as OTPs or security alerts), these notifications are immediately forwarded to the respective Notification Sender Services (Email, SMS, Push, etc.). While this flow seems efficient, it introduces significant coupling between services, which can cause serious issues in real-world scenarios.
Imagine an e-commerce platform during a flash sale. The system experiences a huge spike in requests:
- Push notifications for promotions
- Emails for order confirmations
- SMS notifications for OTPs
This leads to multiple challenges:
- Since notifications are sent directly to services, any slow service (e.g., SMS) can block the Prioritization Service.
- The system gets stuck waiting, reducing the overall throughput.
- If a Notification Sender Service crashes (e.g., SMS), in-transit notifications are lost.
- No retry mechanism exists for failed messages.
In this tightly coupled system, the failure of one service impacts the entire notification flow.
To address these issues, we introduce message queues between the Prioritization Service and Notification Sender Services.
-
No Burden on Prioritization Service
- If a service (e.g., SMS) slows down, it pulls messages from its queue instead of blocking the system.
-
Retry Mechanism for Failures
- If a service is temporarily down, messages stay in the queue and are retried when the service is back.
- Client sends notifications to the API Gateway.
- API Gateway forwards the request to the Rate Limiter.
- Rate Limiter checks if the user has exceeded their notification quota:
- If exceeded: Notifications are delayed/discarded.
- If within limit: Notification is passed to the next step.
- Validation Service retrieves user details from UsersInfo DB:
- If user details don’t match: Filtered out.
- If valid: Passed to the next step.
- UserPreference Service retrieves user preferences from UserPreference DB:
- If notification doesn’t match preferences: Filtered out.
- If it aligns: Passed to the next step.
- Prioritization Service organizes notifications by priority (e.g., OTPs first).
- Message Queue stores categorized notifications (e.g., Email, SMS, Push).
- Notification Sender Services subscribe to their respective queues:
- EmailNotificationSenderService
- SmsNotificationSenderService
- PushNotificationSenderService
- Notification Sender Services forward notifications to 3P services:
- APNs (iOS)
- FCM (Android)
- Twilio (SMS)
- Mailchimp (Email)
- User receives the notification on their device.
By introducing message queues, the system becomes scalable, resilient, and efficient.
In order to decide the DB type, here are some general guidelines that you can follow, but DO REMEMBER it’s not always black and white. A lot depends on the project needs.
| Criteria | Recommended Database Type |
|---|---|
| Fast data access | NoSQL is generally preferred over SQL. |
| Handling large scale | NoSQL databases tend to perform better than SQL databases. |
| Fixed vs Flexible Structure | SQL is more suited for fixed structures, while NoSQL is better for flexible structures. |
| Complex vs Simple Queries | Use SQL for complex queries and NoSQL for simpler queries. |
| Frequent Data Changes | If data changes frequently or will evolve over time, use NoSQL as it supports flexible structures. |
| Database | Deciding Factors | Decision |
|---|---|---|
| UsersInfo DB |
|
SQL |
| UserPreference DB |
|
NoSQL |
| Database Type | SQL |
|---|---|
| Common Queries | Fetching user information based on userId during the validation process (for example, when checking for valid email or phone number). |
| Indexing | userId |
Because we have this common query to grab posts by userId, we create an index on the userId field.
Indexing on userId will set a shortcut to quickly find the data by userId.
| Database Type | NoSQL |
|---|---|
| Common Queries | Fetching user preferences based on userId to determine if the notification should be sent. |
| Indexing | userId |
Let’s try to visualize how the notification system processes multiple notifications as they flow through different services.
Let’s say there are 7 notifications sent by clients to the API Gateway:
- OTP for Login (SMS)
- Order Confirmation (Email)
- Marketing Promotion for Flash Sale (Push Notification - Android)
- Password Reset Request (Email)
- Security Alert for Unusual Login (Push Notification - iOS)
- Shipping Update for Order (SMS)
- New Product Launch Announcement (Email)
The Rate Limiter checks if users have exceeded their notification limits. It removes:
- Marketing Promotion for Flash Sale (Push Notification - Android)
Remaining: 6 notifications.
The Validation Service checks user details (email, phone) against the UsersInfo DB. It finds that:
- Shipping Update for Order (SMS) has invalid user information (e.g., wrong phone number) and removes it.
Remaining: 5 notifications.
The UserPreference Service checks user preferences from the UserPreference DB. It filters out:
- New Product Launch Announcement (Email) → user opted out of marketing emails.
- Order Confirmation (Email) → user prefers to receive such notifications via push notifications.
Remaining: 3 notifications.
The Prioritization Service sorts the remaining notifications by priority:
- Security Alert for Unusual Login (iOS Push) – high priority
- OTP for Login (SMS) – high priority
- Password Reset Request (Email) – medium priority
Each is placed in the appropriate message queue (SMS, Email, iOS).
Each Notification Sender Service (e.g., SMS, Email, iOS) picks up the notifications from their respective queues and forwards them to third-party services:
- OTP for Login → Twilio (SMS)
- Security Alert → APNs (iOS Push)
- Password Reset Request → Mailchimp (Email)
The notifications are delivered successfully to the users' devices:
- OTP for Login (SMS)
- Security Alert for Unusual Login (iOS Push)
- Password Reset Request (Email)
