webauthn is a pure SQL PostgreSQL extension implementing the WebAuthn protocol
used by modern browsers for credential creation and assertion
using a U2F Token, like those provided by Yubico,

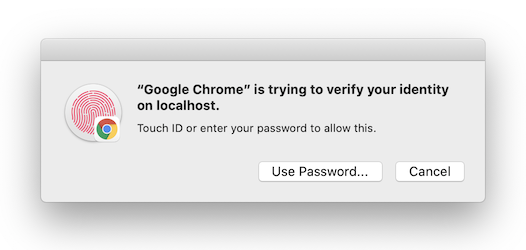

or using Built-in sensors, as seen in the Chrome example below.
pgcrypto for the digest() and gen_random_bytes() functions.
pguecc for the ECDSA cryptographic ecdsa_verify() function.
Install the webauthn extension with:
$ git clone https://github.com/truthly/pg-webauthn.git
$ cd pg-webauthn
$ make
$ make install
$ make installcheck
Note that the Postgres development tools and a C compiler must be installed (the postgresql-dev or similar package) and the pgcrypto extension must be included in the Postgres distribution (it's generally included by default; if not, the error will mention "could not open extension control file ".../pgcrypto.control").
Use with:
$ psql
# CREATE EXTENSION webauthn CASCADE;
NOTICE: installing required extension "pguecc"
NOTICE: installing required extension "pgcrypto"
CREATE EXTENSION;
The API consists of two sign-up functions and two sign-in functions.
To sign-up, the browser first calls webauthn.init_credential() to get a list of supported crypto algorithms together with a random challenge to be used in the subsequent webauthn.make_credential() call to save the public key credential generated by the browser.
| Input Parameter | Type | Default |
|---|---|---|
| challenge | bytea | |
| relying_party_name | text | |
| relying_party_id | text | |
| user_name | text | |
| user_id | bytea | |
| user_display_name | text | |
| timeout | interval | '5 minutes' |
| user_verification | webauthn.user_verification_requirement | 'preferred' |
Source code: FUNCTIONS/init_credential.sql
Stores the random challenge and all the other fields to the webauthn.credential_challenges table.
Returns a json object compatible with the browser navigator.credentials.create() method,
where the only key, publicKey, contains a PublicKeyCredentialCreationOptions object.
The timeout value, if specified, must lie within a reasonable range between 30 seconds to 10 minutes.
SELECT jsonb_pretty(webauthn.init_credential(
challenge := '\xf1f49abe5e3dcff7a1f522252f4fb574df415dd087aae156114ac9b51fbf4129'::bytea,
relying_party_name := 'Localhost'::text,
relying_party_id := 'localhost'::text,
user_name := 'test'::text,
user_id := '\xb3368c7317791c5a98b81428cdf3e35012aa71e6090d04930b390049ead7c282064ee24e9dc7219b6d727cc85aad4dcc0f3134f8e62c6c896a48ac08aac3db1b'::bytea,
user_display_name := 'test'::text,
timeout := '2 minutes'::interval
));{
"publicKey": {
"rp": {
"id": "localhost",
"name": "Localhost"
},
"user": {
"id": "szaMcxd5HFqYuBQozfPjUBKqceYJDQSTCzkASerXwoIGTuJOncchm21yfMharU3MDzE0-OYsbIlqSKwIqsPbGw",
"name": "test",
"displayName": "test"
},
"timeout": 120000,
"challenge": "8fSavl49z_eh9SIlL0-1dN9BXdCHquFWEUrJtR-_QSk",
"attestation": "none",
"pubKeyCredParams": [
{
"alg": -7,
"type": "public-key"
}
],
"authenticatorSelection": {
"userVerification": "preferred",
"requireResidentKey": false
}
}
}| Input Parameter | Type |
|---|---|
| credential_id | text (base64url) |
| credential_type | webauthn.credential_type |
| attestation_object | text (base64url) |
| client_data_json | text (base64url) |
| relying_party_id | text (valid domain string) |
Source code: FUNCTIONS/make_credential.sql
Stores the public key for the credential generated by the browser to the webauthn.credentials table.
The challenge can only be used once to prevent replay attacks.
If successful, returns the corresponding user_id bytea value given as input to webauthn.init_credential(), or NULL to indicate failure.
SELECT * FROM webauthn.make_credential(
credential_id := 'ASiVjgqKJgvSawjRv_bjFR6l9uOgpLJ9jaZbGkxytC3vQzq21tlSuPgAnvQF6B0BLK0dujjrqvK3oBktYP8FEdYOZz8LK8PjiyDGXiCrlSYDy58JILDNJIi-n7973HgHhYiDgN_iBCTfX9Y',
credential_type := 'public-key',
attestation_object := 'o2NmbXRkbm9uZWdhdHRTdG10oGhhdXRoRGF0YVjvSZYN5YgOjGh0NBcPZHZgW4_krrmihjLHmVzzuoMdl2NFX9SYD63OAAI1vMYKZIsLJfHwVQMAawEolY4KiiYL0msI0b_24xUepfbjoKSyfY2mWxpMcrQt70M6ttbZUrj4AJ70BegdASytHbo466ryt6AZLWD_BRHWDmc_CyvD44sgxl4gq5UmA8ufCSCwzSSIvp-_e9x4B4WIg4Df4gQk31_WpQECAyYgASFYIFYGLzqrkNKDty3WMhTXQzjWxIXZekODNhjBB8MjZHgpIlgg1wRbPHszTjstSPn7dPAqVDmO0krRy8rWpTjJDAeOFVY',
client_data_json := 'eyJ0eXBlIjoid2ViYXV0aG4uY3JlYXRlIiwiY2hhbGxlbmdlIjoiOGZTYXZsNDl6X2VoOVNJbEwwLTFkTjlCWGRDSHF1RldFVXJKdFItX1FTayIsIm9yaWdpbiI6Imh0dHA6Ly9sb2NhbGhvc3QiLCJjcm9zc09yaWdpbiI6ZmFsc2V9',
relying_party_id := 'localhost'
);
user_id
------------------------------------------------------------------------------------------------------------------------------------
\xb3368c7317791c5a98b81428cdf3e35012aa71e6090d04930b390049ead7c282064ee24e9dc7219b6d727cc85aad4dcc0f3134f8e62c6c896a48ac08aac3db1b
(1 row)To sign-in, the browser first calls webauthn.get_credentials() to get a list of allowed credentials for the given user_name together with a random challenge to be used in the subsequent webauthn.verify_assertion() call to verify the signature generated by the browser.
| Input Parameter | Type | Default |
|---|---|---|
| challenge | bytea | |
| relying_party_id | text (valid domain string) | |
| user_name | text | |
| timeout | interval | '5 minutes' |
| user_verification | webauthn.user_verification_requirement | 'preferred' |
Source code: FUNCTIONS/get_credentials.sql
Stores the random challenge to the webauthn.assertion_challenges table and returns a json object with all public keys matching relying_party_id and user_name. Such public keys have previously been created by the webauthn.make_credential() function, stored in the webauthn.credentials table.
The timeout value, if specified, must lie within a reasonable range between 30 seconds to 10 minutes.
The returned json object is compatible with the browser navigator.credentials.get() method,
where the only key, publicKey, contains a PublicKeyCredentialRequestOptions object.
SELECT jsonb_pretty(webauthn.get_credentials(
challenge := '\xa5174d506a1c0a0e9cd9cd65dae1221582b17824cb9b8c91f032f43c1c09cd1f'::bytea,
relying_party_id := 'localhost',
user_name := 'test',
timeout := '2 minutes'::interval
));{
"publicKey": {
"rpId": "localhost",
"timeout": 120000,
"challenge": "pRdNUGocCg6c2c1l2uEiFYKxeCTLm4yR8DL0PBwJzR8",
"allowCredentials": [
{
"id": "ASiVjgqKJgvSawjRv_bjFR6l9uOgpLJ9jaZbGkxytC3vQzq21tlSuPgAnvQF6B0BLK0dujjrqvK3oBktYP8FEdYOZz8LK8PjiyDGXiCrlSYDy58JILDNJIi-n7973HgHhYiDgN_iBCTfX9Y",
"type": "public-key"
}
],
"userVerification": "preferred"
}
}| Input Parameter | Type |
|---|---|
| credential_id | text (base64url) |
| credential_type | webauthn.credential_type |
| authenticator_data | text (base64url) |
| client_data_json | text (base64url) |
| signature | text (base64url) |
| user_handle | text (base64url) |
| relying_party_id | text (valid domain string) |
Source code: FUNCTIONS/verify_assertion.sql
Verifies the signature is valid for the credential matching client_data_json->>challenge, credential_id, credential_type and relying_party_id.
The user_handle must also match the user_id for the credential, but not if it is NULL or empty string, in which case the check is skipped.
The challenge can only be used once to prevent replay attacks.
If the signature could be successfully verified, the function stores the verified assertion to the webauthn.assertions table and returns the user_id bytea value for the corresponding credential, or NULL to indicate failure.
SELECT * FROM webauthn.verify_assertion(
credential_id := 'ASiVjgqKJgvSawjRv_bjFR6l9uOgpLJ9jaZbGkxytC3vQzq21tlSuPgAnvQF6B0BLK0dujjrqvK3oBktYP8FEdYOZz8LK8PjiyDGXiCrlSYDy58JILDNJIi-n7973HgHhYiDgN_iBCTfX9Y',
credential_type := 'public-key',
authenticator_data := 'SZYN5YgOjGh0NBcPZHZgW4_krrmihjLHmVzzuoMdl2MFX9SYFg',
client_data_json := 'eyJ0eXBlIjoid2ViYXV0aG4uZ2V0IiwiY2hhbGxlbmdlIjoicFJkTlVHb2NDZzZjMmMxbDJ1RWlGWUt4ZUNUTG00eVI4REwwUEJ3SnpSOCIsIm9yaWdpbiI6Imh0dHA6Ly9sb2NhbGhvc3QiLCJjcm9zc09yaWdpbiI6ZmFsc2V9',
signature := 'MEUCIBLCsANiAuhOPX2_GkzCPHhYPAL2xL1Ms22xFHiLDHJfAiEA_Ru_HfC51p-PjvU9VVV5lRKk_swZ9vKMJedQyhnsc4w',
user_handle := 'szaMcxd5HFqYuBQozfPjUBKqceYJDQSTCzkASerXwoIGTuJOncchm21yfMharU3MDzE0-OYsbIlqSKwIqsPbGw',
relying_party_id := 'localhost'
);
user_id
------------------------------------------------------------------------------------------------------------------------------------
\xb3368c7317791c5a98b81428cdf3e35012aa71e6090d04930b390049ead7c282064ee24e9dc7219b6d727cc85aad4dcc0f3134f8e62c6c896a48ac08aac3db1b
(1 row)
