waybar-mediaplayer (GABRIWAR VERSION FIXED LYRICS AND THEMING)

Introduction

This is a mediaplayer for waybar.

Widget with album art and progress bar:

Notification with album art, track ticle and track artist

Tooltip with track title, track artist and track album:

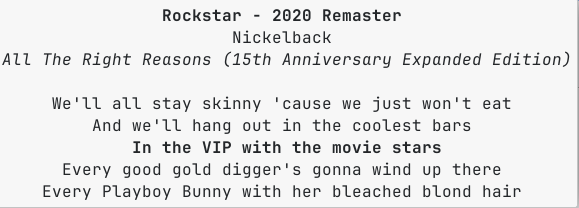

Synced lyrics in tooltip:

It features:

1. Multi-player support (Firefox, Chrome, Chromium, Thorium, Spotify, and more)
2. Right-click to cycle through active players
3. Progress bar
4. Tooltip that displays title, author and album
5. Synced lyrics in tooltip
6. Album cover art (click to zoom)
7. Optional notification on song change
8. Click to play/pause, scroll up/down for next/previous track

Requirements

• playerctl must be installed
• The default configuration uses Nerd Fonts, so it requires waybar to use a Nerd Font
• The default configuration uses feh to open the album art image

Install

1. Create a virtual environment within which to run waybar. For example, using pyenv this would be:

   pyenv virtualenv 3.12.0 waybar
   pyenv activate waybar


2. Create a wrapper script to run waybar inside this virtual environment.

   For example, always using pyenv, create the file start_waybar and put it in your PATH:

   #!/usr/bin/env bash
   . ~/.pyenv/versions/waybar/bin/activate
   waybar


3. Clone this repo:

   git clone https://github.com/raffaem/waybar-mediaplayer "$HOME/.config/waybar/waybar-mediaplayer"
   cd "$HOME/.config/waybar/waybar-mediaplayer"


4. Install the required python packages inside your virtual environment:

   pip3 install -r requirements.txt


5. You can configure which players to support by editing "$HOME/.config/waybar/waybar-mediaplayer/src/config.json. The default configuration supports Firefox, Chrome, Chromium, Thorium, and Spotify:

   "player_name": ["firefox", "chrome", "chromium", "thorium", "spotify"]

   To find available players on your system, run playerctl --list-all while your media player is running. You can add or remove players from this list as needed.

6. Put the following in $HOME/.config/waybar/config:

   "modules-left": ["image", "custom/mediaplayer"],


   "image": {
     "path": "/tmp/waybar-mediaplayer-art",
     "size": 32,
     "signal": 4,
     "on-click": "feh --auto-zoom --borderless --title 'feh-float' /tmp/waybar-mediaplayer-art"
   },

   "custom/mediaplayer": {
       "exec": "$HOME/.config/waybar/waybar-mediaplayer/src/mediaplayer monitor",
       "return-type": "json",
       "format": "{}",
       "on-click": "$HOME/.config/waybar/waybar-mediaplayer/src/mediaplayer play-pause",
       "on-click-right": "$HOME/.config/waybar/waybar-mediaplayer/src/mediaplayer select",
       "on-scroll-up": "$HOME/.config/waybar/waybar-mediaplayer/src/mediaplayer next",
       "on-scroll-down": "$HOME/.config/waybar/waybar-mediaplayer/src/mediaplayer previous",
       "min-length": 20,
       "max-length": 20
   },


   Put the following in $HOME/.config/waybar/style.css:

   #custom-mediaplayer
   {
     font-size: 16px;
     border-radius: 2%;
   }
   @import "./waybar-mediaplayer/src/style.css";


7. Start waybar using the wrapper script start_waybar.

The mediaplayer should work with the following controls:

• Left click: Play/pause
• Right click: Cycle through active players
• Scroll up: Next track
• Scroll down: Previous track

Update

cd "$HOME/.config/waybar/waybar-mediaplayer"
git pull

Personalization

Multiple Players

The widget supports monitoring multiple media players simultaneously. Right-click on the widget to cycle through all available players. The selected player becomes the active player for controls (play/pause, next, previous). Your selection persists across sessions.

If no player is selected, the widget automatically uses the first available player from your configured list.

Other Options

To disable notifications, put is_notification=false in config.json.

To change widget's length, set min-length and max-length in $HOME/.config/waybar/config, and set widget_length in $HOME/.config/waybar/waybar-mediaplayer/src/config.json. These 3 variables MUST be set to the same value.

In order for the album art to automatically update on song change, it's important that the signal variable of the image module in $HOME/.config/waybar/config matches the image_signal variable in $HOME/.config/waybar/waybar-mediaplayer/src/config.json.

If you change the colors of the bar in $HOME/.config/waybar/waybar-mediaplayer/src/config.json, make sure to apply the changes by running $HOME/.config/waybar/waybar-mediaplayer/src/mkstyle and restart waybar.

Troubleshooting

Browser Support (Firefox, Chrome, etc.)

Browsers with MPRIS support are now natively supported. Firefox, Chrome, Chromium, and Thorium work out of the box.

Note for Firefox users: If you experience issues with the progress bar (Firefox may not always report song length), you can optionally install the Plasma Integration add-on for better metadata support. If using this add-on, add "plasma-browser-integration" to your player_name array in config.json.

For album art from browsers, you may need to set convert_to_jpeg to true in config.json (this option may decrease performance slightly).

Me progress bar doesn't work

It's likely cause by the player not reporting song length or position back to us. Run $HOME/.config/waybar/waybar-mediaplayer/src/mediaplayer -vvv to debug.

Player reports its name with instance number

This is handled automatically. If a player reports an instance number after its name (e.g., spotify.instance12345), you only need to configure the base player name (e.g., "spotify") in config.json. The software will automatically match any player whose name starts with the configured name.

Me title and tooltip are empty

It's likely your song file doesn't contain metadata.

Run exiftool SONG.mp3 and check the Title, Album and Artist fields.

Me album art doesn't change on song change

Make sure that the signal in the image module in $HOME/.config/waybar/config matches the number provided by image_signal in $HOME/.config/waybar/waybar-mediaplayer/src/config.json.
