Graphical bug on lower screen space

[chroeseler]

Describe the bug

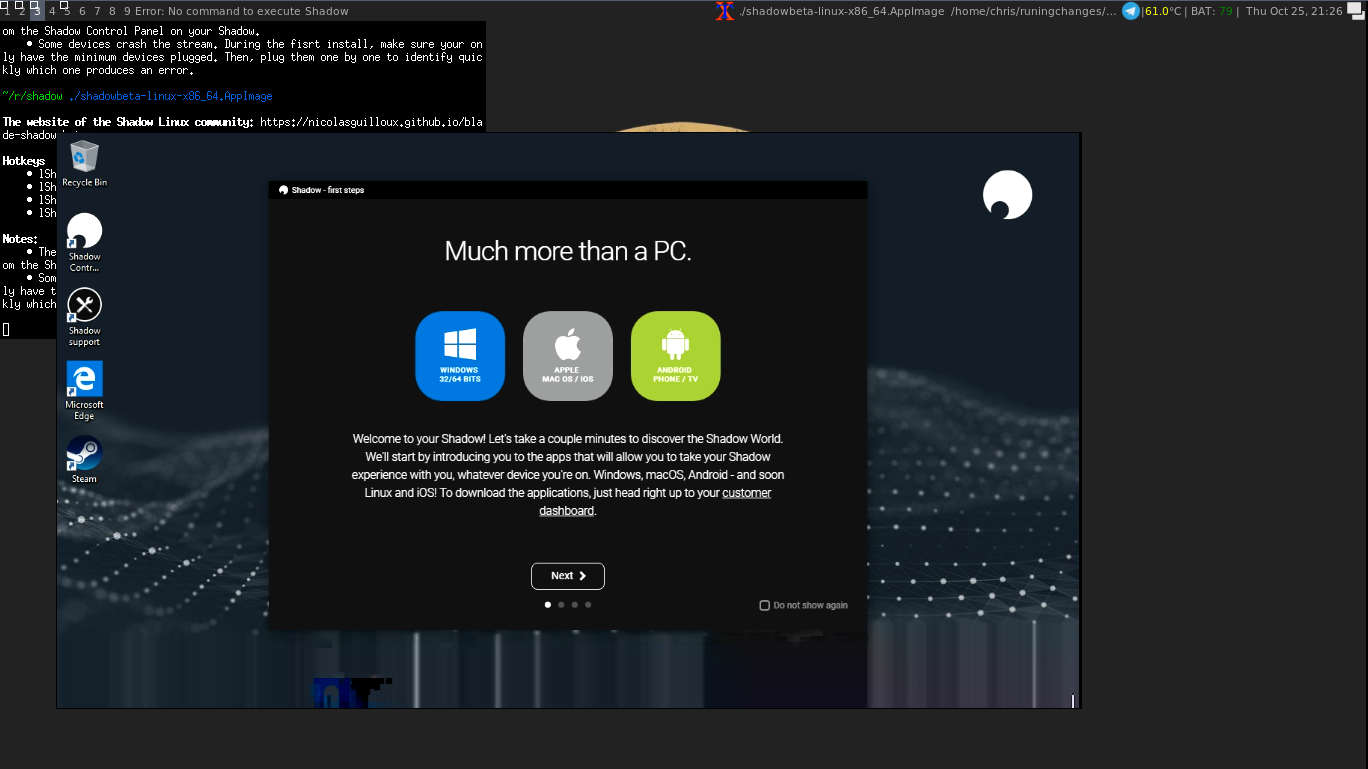

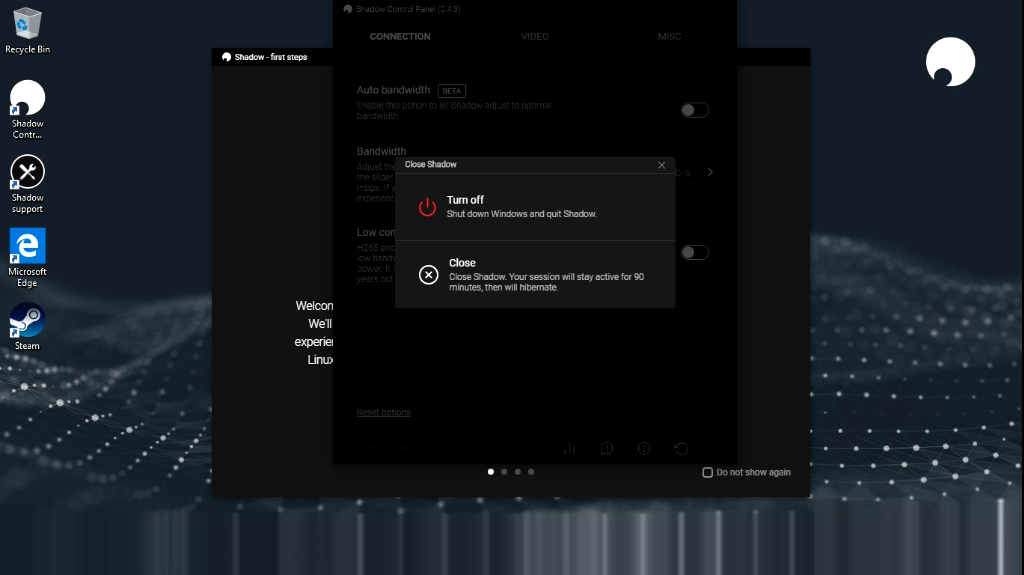

When using shadow on linux my screen glitches on the lower 1/10 or so.

I'm not confident that it's a issue with the AppImage, but rather with my x11 configuration. But up to now I don't have any clue where the problem originated.
When I use shadow in windowed mode the bug scales. So it is bound to the application window.

System

• OS: Arch
• OS Version: 4.18.12-arch1-1-ARCH
• Environment: awesome v4.2
• Application: AppImage
• Application Version: 2.0.2

Configuration

• The user is in input group: Yes
• The environment uses Xorg: Yes
• VA API detects H264: Yes, H265: No

To Reproduce
Steps to reproduce the behavior:

1. Start Shadow Launcher with AppImage
2. Enjoy

[NicolasGuilloux]

You are not the only one to have this issue. It is linked with the VA API decoding functions.

I will recommand people with the same issue to publish in this issue and warn the developper about it.

In the meantime, can you post your vainfo please?

Thanks for reporting this bug.

[chroeseler]

Sure thing:

vainfo: VA-API version: 1.3 (libva 2.3.0)
vainfo: Driver version: Intel i965 driver for Intel(R) Sandybridge Mobile - 2.2.0
vainfo: Supported profile and entrypoints
      VAProfileMPEG2Simple            : VAEntrypointVLD
      VAProfileMPEG2Main              : VAEntrypointVLD
      VAProfileH264ConstrainedBaseline: VAEntrypointVLD
      VAProfileH264ConstrainedBaseline: VAEntrypointEncSlice
      VAProfileH264Main               : VAEntrypointVLD
      VAProfileH264Main               : VAEntrypointEncSlice
      VAProfileH264High               : VAEntrypointVLD
      VAProfileH264High               : VAEntrypointEncSlice
      VAProfileH264StereoHigh         : VAEntrypointVLD
      VAProfileVC1Simple              : VAEntrypointVLD
      VAProfileVC1Main                : VAEntrypointVLD
      VAProfileVC1Advanced            : VAEntrypointVLD
      VAProfileNone                   : VAEntrypointVideoProc

[BurakDev]

Same for me.

I have a disabled GeForce 840m.

processor :
Intel(R) Core(TM) i7-4510U CPU @ 2.00GHz

release :
Ubuntu 18.04.1 LTS

version :
AppImage 2.0.2

vainfo output :

libva info: va_getDriverName() returns 0
libva info: Trying to open /usr/lib/x86_64-linux-gnu/dri/i965_drv_video.so
libva info: Found init function __vaDriverInit_1_1
libva info: va_openDriver() returns 0
vainfo: VA-API version: 1.1 (libva 2.1.0)
vainfo: Driver version: Intel i965 driver for Intel(R) Haswell Mobile - 2.1.0
vainfo: Supported profile and entrypoints
      VAProfileMPEG2Simple            :	VAEntrypointVLD
      VAProfileMPEG2Simple            :	VAEntrypointEncSlice
      VAProfileMPEG2Main              :	VAEntrypointVLD
      VAProfileMPEG2Main              :	VAEntrypointEncSlice
      VAProfileH264ConstrainedBaseline:	VAEntrypointVLD
      VAProfileH264ConstrainedBaseline:	VAEntrypointEncSlice
      VAProfileH264Main               :	VAEntrypointVLD
      VAProfileH264Main               :	VAEntrypointEncSlice
      VAProfileH264High               :	VAEntrypointVLD
      VAProfileH264High               :	VAEntrypointEncSlice
      VAProfileH264MultiviewHigh      :	VAEntrypointVLD
      VAProfileH264MultiviewHigh      :	VAEntrypointEncSlice
      VAProfileH264StereoHigh         :	VAEntrypointVLD
      VAProfileH264StereoHigh         :	VAEntrypointEncSlice
      VAProfileVC1Simple              :	VAEntrypointVLD
      VAProfileVC1Main                :	VAEntrypointVLD
      VAProfileVC1Advanced            :	VAEntrypointVLD
      VAProfileNone                   :	VAEntrypointVideoProc
      VAProfileJPEGBaseline           :	VAEntrypointVLD

[cedricboucard]

I have the same probleme

version :

AppImage 2.0.2

Vainfo output :

libva info: VA-API version 1.1.0
libva info: va_getDriverName() returns 0
libva info: Trying to open /usr/lib/x86_64-linux-gnu/dri/i965_drv_video.so
libva info: Found init function __vaDriverInit_1_1
libva info: va_openDriver() returns 0
vainfo: VA-API version: 1.1 (libva 2.1.0)
vainfo: Driver version: Intel i965 driver for Intel(R) Sandybridge Desktop - 2.1.0
vainfo: Supported profile and entrypoints
      VAProfileMPEG2Simple            :	VAEntrypointVLD
      VAProfileMPEG2Main              :	VAEntrypointVLD
      VAProfileH264ConstrainedBaseline:	VAEntrypointVLD
      VAProfileH264ConstrainedBaseline:	VAEntrypointEncSlice
      VAProfileH264Main               :	VAEntrypointVLD
      VAProfileH264Main               :	VAEntrypointEncSlice
      VAProfileH264High               :	VAEntrypointVLD
      VAProfileH264High               :	VAEntrypointEncSlice
      VAProfileH264StereoHigh         :	VAEntrypointVLD
      VAProfileVC1Simple              :	VAEntrypointVLD
      VAProfileVC1Main                :	VAEntrypointVLD
      VAProfileVC1Advanced            :	VAEntrypointVLD
      VAProfileNone                   :	VAEntrypointVideoProc

[MouhK]

Hi !

Could you check your intel driver options (if any) in Xorg ?
Could you try this ?

• Create "/etc/X11/xorg.conf.d/shadow.conf"
• Add this Section

Section "Device"
        Identifier "Intel Graphics"
        Driver "intel"
        Option "AccelMethod" "sna"
        Option "DRI" "3"
        Option "TearFree" "True"
EndSection

• log out

This will load dri3, enable "sna" (default method).
The SNA acceleration method causes tearing on some machines, the "TearFree" option fix this.

[chroeseler]

I don't had any intel configs in my X11 folder.
I created this shadow.conf file like described and restarted my xorg session, but nothing changed.

[MouhK]

Could try to play this video with mpv (you probably need to install it).
mpv --vo=vaapi --hwdec=vaapi -v nature1080p-high.h264

Make sure the log displays [vd] Using hardware decoding (vaapi).

If you have the same issue, it's probably linked to your environment, otherwise my code :)
This will help a lot.

Thank you !

[chroeseler]

Hey, played the video. No problems there. vaapi was used.
I added the mpv output.
h264.log
Hope that helps. :D

[MouhK]

Thanks a lot. This will help me fix it faster :)

[aarnoud]

@MouhK well, we tested many options (sna/uxa/triplebuffer/DRI) without success. HD2000-HD4000 still suffers the issue. Those card works on Windows and Mac, so it's not a GPU issue. I've tested it also against 2.0.0-b10, same issue.

[jpmlima]

did you solve the problem m8?
