Quadratic Gaussian Splatting: High Quality Surface Reconstruction with Second-order Geometric Primitives

$$ \color{Pink}{\Huge{\textsf{ICCV\ 2025}}} $$

Project page | Paper | Quadric Surfel Rasterizer (python)

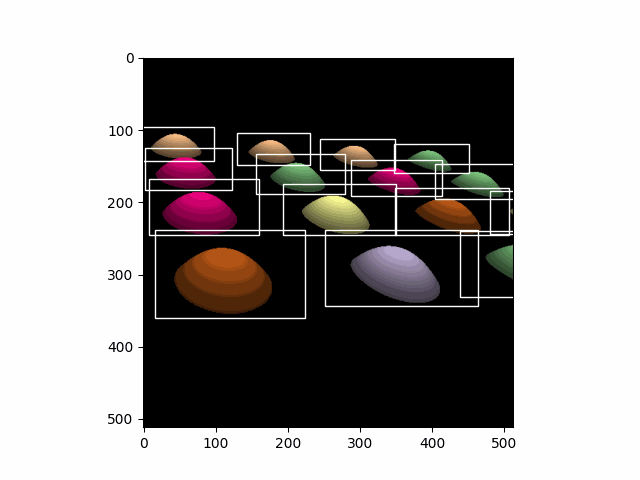

This repo contains the official implementation for the paper “Quadratic Gaussian Splatting for Efficient and Detailed Surface Reconstruction.” Following 2DGS, we also provide a Python demo that demonstrates the differentiable rasterization process for quadratic surfaces:

New Feature

• 2025/08/11: We replaced the original rectangular bounding box with a more compact truncated cone-shaped bounding box, which significantly reduces the invalid rendering area and achieves a two-fold speedup.

	Mip-NeRF 360		TNT
	Training time	FPS	Training time	FPS
2DGS	1h5min	15.34	34min	31.66
QGS	1h48min	7.61	2h	13.27
QGS w/ TB	1h13min	14.15	43min	25.36

Installation

# download
git clone https://github.com/will-zzy/QGS.git

conda env create -f environment.yml

Training

To train a scene, simply use

python train.py --conf_path ./config/base.yaml # or DTU.yaml/TNT.yaml

In base.yaml, you can adjust all configurable parameters, with most parameters remaining consistent with 2DGS. Furthermore, we have briefly experimented with curvature-related losses, such as curvature distortion loss and curvature flatten loss. Unfortunately, their performance was not satisfactory.

You need to modify the root_dir in the xxx.yaml file to point to your dataset directory, for example:

xxx.yaml
└── root_dir
    ├── images
    └── sparse/0

Tips for adjusting the parameters on your own dataset:

• We observed that setting pipeline.depth_ratio=1 enhances rendering quality. Additionally, by employing per-pixel reordering, we effectively eliminate the "disk-aliasing" artifacts present in 2DGS when using depth_ratio=1. Therefore, we recommend using pipeline.depth_ratio=1 when aiming to improve rendering quality.
• In most scenarios, we recommend adjusting the optimizer.densify_grad_threshold and optimizer.lambda_dist parameters to achieve better reconstruction. The former controls the number of Gaussian primitives, while the latter controls the compactness of the primitives.
• For large scenes, especially aerial or street views, we suggest adjusting the number of training iterations based on the number of images. We provide TNT_Courthouse.yaml as an example.

Testing

To extract scene geometry, simply use:

python render.py --conf_path ./config/base.yaml

In the pipeline section of the base.yaml configuration file, you can set various parameters for mesh extraction, maintaining the same meanings as those in 2DGS.

Evaluation

For geometry reconstruction on the DTU dataset, please download the preprocessed data from Drive or Hugging Face. You also need to download the ground truth DTU point cloud.

Next, modify the DTU.yaml configuration file by setting the load_model_path to the path of your trained model and dataset_GT_path to the path of the ground truth dataset. After making these changes, simply execute the following commands to perform the evaluation:

python scripts/eval_dtu/eval.py --conf_path ./config/DTU.yaml

For the TNT dataset, please download the preprocessed TNT_data. Additionally, you need to download the ground truth TNT_GT.

Next, modify the TNT.yaml configuration file by setting load_model_path to the path of your trained model and dataset_GT_path to the path of the ground truth dataset. After making these changes, simply execute the following commands to perform the evaluation:

python scripts/eval_tnt/run.py --conf_path ./config/TNT.yaml -m <path to pre-trained model>

We also provide DTU Evaluation Results

Table Results

Chamfer distance on DTU dataset (lower is better)

	24	37	40	55	63	65	69	83	97	105	106	110	114	118	122	Mean
Paper	0.38	0.62	0.37	0.38	0.75	0.55	0.51	1.12	0.68	0.61	0.46	0.58	0.35	0.41	0.40	0.545
Reproduce	0.38	0.64	0.35	0.34	0.77	0.55	0.52	1.11	0.68	0.60	0.43	0.58	0.35	0.41	0.37	0.539

and TNT Evaluation Results

Table Results

F1 scores on TnT dataset (higher is better)

	Barn	Caterpillar	Ignatius	Truck	Meetingroom	Courthouse	Mean
paper	0.55	0.40	0.81	0.64	0.31	0.28	0.50
Reproduce	0.56	0.41	0.80	0.67	0.39	0.27	0.52

Acknowledgements

This project is built upon 2DGS. The TSDF fusion for extracting mesh is based on Open3D. The rendering script for MipNeRF360 is adopted from Multinerf, while the evaluation scripts for DTU and Tanks and Temples dataset are taken from DTUeval-python and TanksAndTemples, respectively. We thank all the authors for their great repos.

Citation

If you find our code or paper helps, please consider citing:

@inproceedings{zhang2025quadraticgaussiansplattinghigh,
  author    = {Ziyu Zhang and Binbin Huang and Hanqing Jiang and Liyang Zhou and Xiaojun Xiang and Shunhan Shen},
  title     = {{Quadratic Gaussian Splatting: High Quality Surface Reconstruction with Second-order Geometric Primitives}},
  booktitle = {IEEE International Conference on Computer Vision (ICCV)},
  year      = {2025},
}
