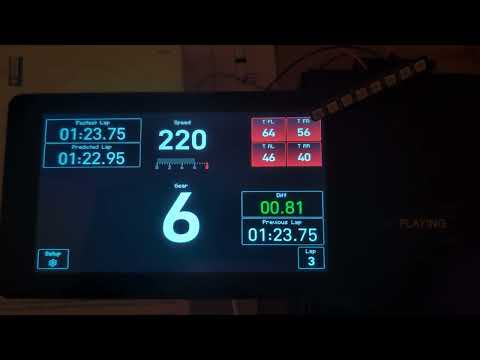

An embedded sim racing dash with a real instrument-cluster layout. Built for readability and reliability while racing. Runs on Raspberry Pi with 7" displays and supports Gran Turismo 7 telemetry.
- Tire temperatures
- Vehicle speed
- Gear indicator
- Graphical RPM
- Shift lights (torque-based optimal shift point)
- Best lap time
- Previous lap time
- Predicted lap time
- Live delta (in real-time)
-
Single-board computers
- Raspberry Pi 4 Model B (1GB RAM, built-in Wi-Fi)
-
Displays
- Raspberry Pi Touch Display 2, 24-bit RGB, 720×1280, five-finger touch
-
Peripherals
- Pimoroni Blinkt! 8-LED bar
-
Input
- Touch control (UI buttons)
- On-screen soft keys for display brightness (+ / −)
Available as a standalone OS image, pre-configured for minimal latency and fast boot times. No manual setup or dependency installation is required.
To get started, download the image and flash it to your SD card. Full instructions in the Wiki.
This project is created for educational and personal use and provided without warranty of any kind, express or implied. Use at your own risk.
All trademarks, logos, and brand names are the property of their respective owners.
Gran Turismo, Gran Turismo 7, GT7 and PlayStation are trademarks or registered trademarks of Sony Interactive Entertainment Inc. and Polyphony Digital Inc.
All of my code is MIT licensed. Libraries follow their respective licenses.
