fix(markdown): render LaTeX math in chat with KaTeX

[benjaminshafii]

What

OpenWork renders Markdown but had no math engine, so $...$, $$...$$, \(...\) and \[...\] all displayed as raw LaTeX source — making technical/physics conversations hard to read.

Reported by Daniel Kovner (kovnerd@gmail.com) against v0.18.12 via in-app feedback.

Addresses all three asks from the report:

1. Render standard $...$ / $$...$$ with KaTeX, via marked-katex-extension (the upstream opencode web approach).
2. Also accept \(...\) / \[...\], which models commonly emit.
3. Fail gracefully on malformed LaTeX without breaking the rest of the message.

How

• apps/app/src/components/markdown/markdown-math.ts (new) — one marked extension. marked-katex-extension handles the dollar delimiters; local block + inline extensions handle \(...\) / \[...\], which markdown would otherwise swallow as backslash escapes. Kept the standard (not nonStandard) dollar rule so $5 and $10 stays prose.
• Both parsers get the extension — otherwise formulas would flicker away when a message containing a fenced code block upgrades to the Shiki render.
• DOMPurify: allow <semantics> / <annotation>. They are not in DOMPurify's default MathML allowlist, so the accessible MathML branch (and copy-as-TeX) was being silently stripped.
• Graceful failure: every math renderer is wrapped. throwOnError: false only catches KaTeX ParseError; anything else would throw straight out of the synchronous React render and blank the whole message. Fallback shows the original LaTeX.
• text-highlights.ts: skip .katex so find-in-conversation cannot inject <mark> into formula layout spans.
• CSS: import katex/dist/katex.min.css; keep formulas at surrounding text size and let long display math scroll.

Tests

Command	Result
pnpm --filter @openwork/app typecheck	clean
bun test --isolate tests/ (apps/app)	584 pass, 2 fail
pnpm --filter @openwork/app build	clean, 59 KaTeX font files emitted
pnpm fraimz --flow markdown-math	PASSED (5 frames)
pnpm fraimz --flow markdown-primitive	steps 1-3 pass (regression check)

The 2 unit failures (message-list-loading.test.tsx) are pre-existing — baseline origin/dev gives an identical 574 pass / 2 fail, and the file passes in isolation on both.

markdown-primitive step 4 times out mounting the Browser panel; verified identical on baseline origin/dev in the same sandbox, so it is a sandbox limitation, not a regression. Steps 1-3 (chat markdown, code blocks, search highlighting) pass on both.

New unit tests in apps/app/tests/markdown-math.test.ts cover all four delimiters, MathML survival through sanitization, graceful failure, currency amounts, code spans, both parsers and both presentations.

Proof

fraimz run driving the real Electron app on Daytona — full artifact posted below.

[vercel]

The latest updates on your projects. Learn more about Vercel for GitHub.

Project	Deployment	Actions	Updated (UTC)
openwork-app	Ready	Preview	Aug 1, 2026 7:51am
openwork-den	Ready	Preview	Aug 1, 2026 7:51am
openwork-den-worker-proxy	Ready	Preview	Aug 1, 2026 7:51am
openwork-diagnostics	Ready	Preview	Aug 1, 2026 7:51am
openwork-landing	Ready	Preview, v0	Aug 1, 2026 7:51am

[benjaminshafii]

fraimz — ✅ PASSED

1 passed · 0 failed · 0 skipped — run 2026-08-01T07-09-58-047Z

Full frame proof with validated screenshots: evals/results/2026-08-01T07-09-58-047Z/fraimz.html (re-run: pnpm fraimz --flow markdown-math)

✅ markdown-math — LaTeX math renders as typeset math in chat responses

User-facing flow demo

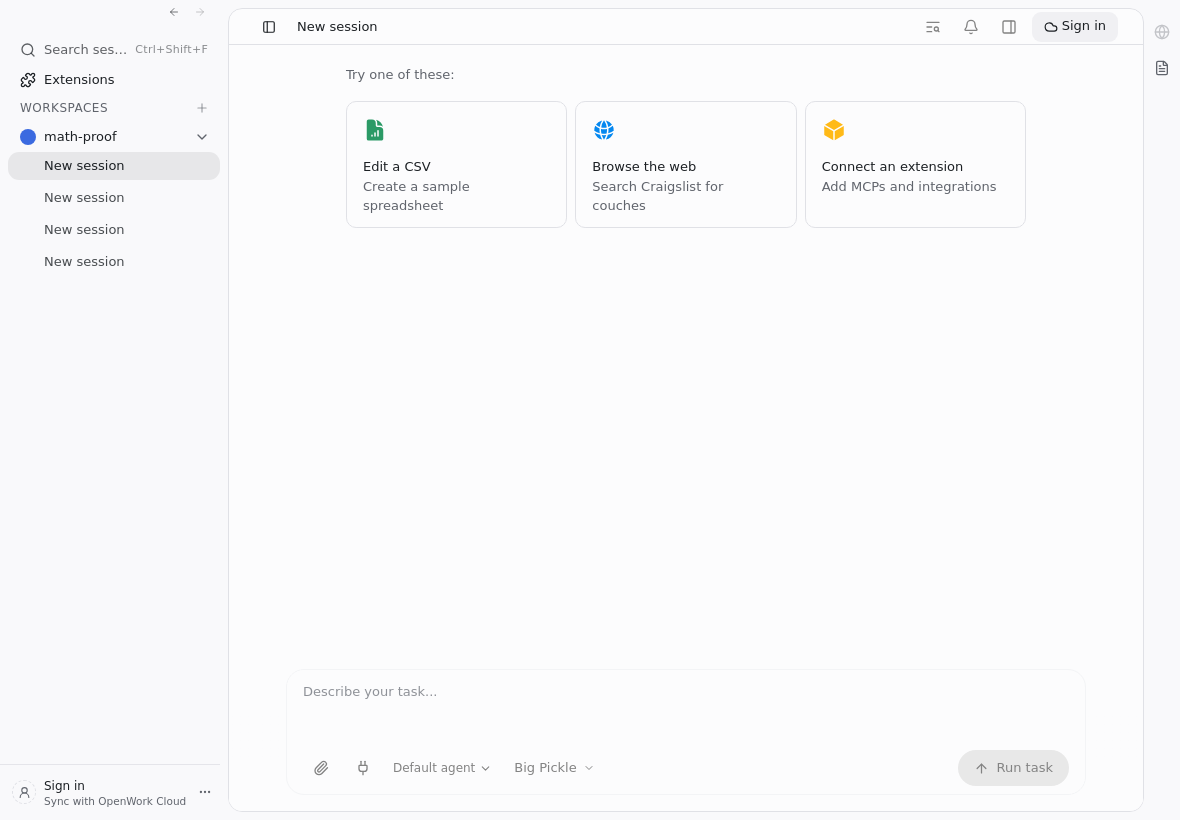

1. OpenWork displays a normal session before the math proof starts

   🎙 OpenWork opens an existing conversation and displays the session normally, with no errors before the math proof begins.

   • ✅ URL hash includes "/session/"
   • ✅ Visible text does not include "Something went wrong"
   • 📸 markdown-math-01-conversation-open.png — 5 validations passed

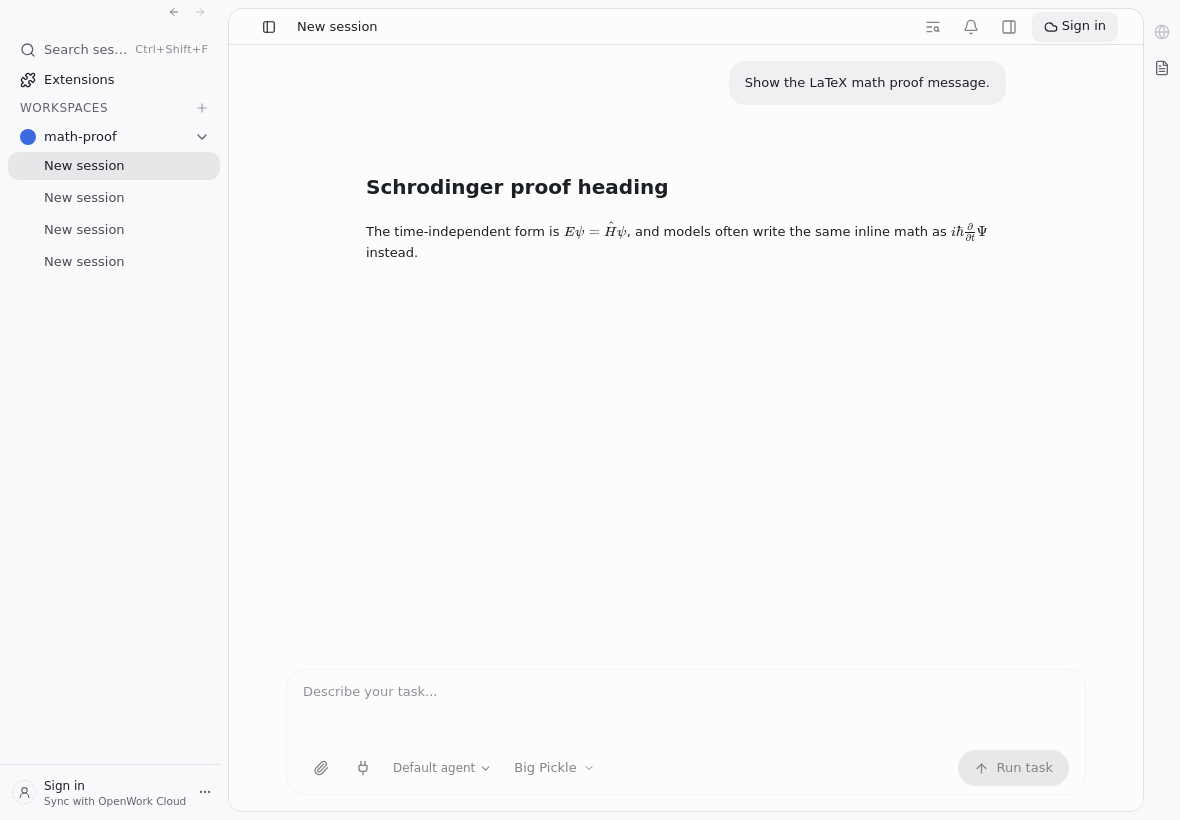

2. Inline $...$ and (...) math render as typeset formulas, not raw LaTeX source

   🎙 A technical answer arrives and the inline formulas read as real typeset math, so dollar-delimited LaTeX no longer shows up as raw source in the sentence.

   • 📸 markdown-math-02-inline-math-rendered.png — 6 validations passed

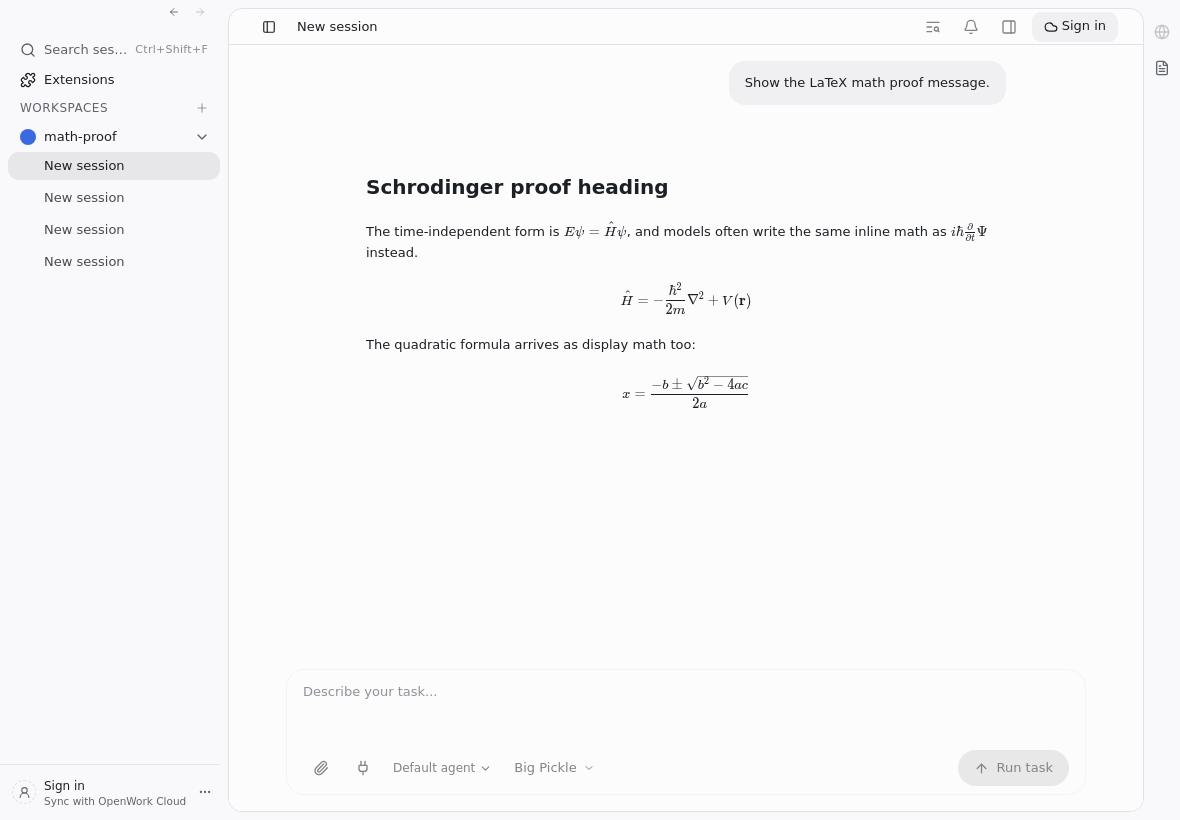

3. $$...$$ and [...] both render as centred display equations

   🎙 The same message shows centred display equations for the Hamiltonian and the quadratic formula, including the bracket delimiters that models commonly emit.

   • 📸 markdown-math-03-display-math-rendered.png — 6 validations passed


4. Each formula keeps a MathML branch so screen readers announce the equation

   🎙 Every formula carries an accessible MathML copy underneath, so screen readers announce the equation instead of reading out backslashes.

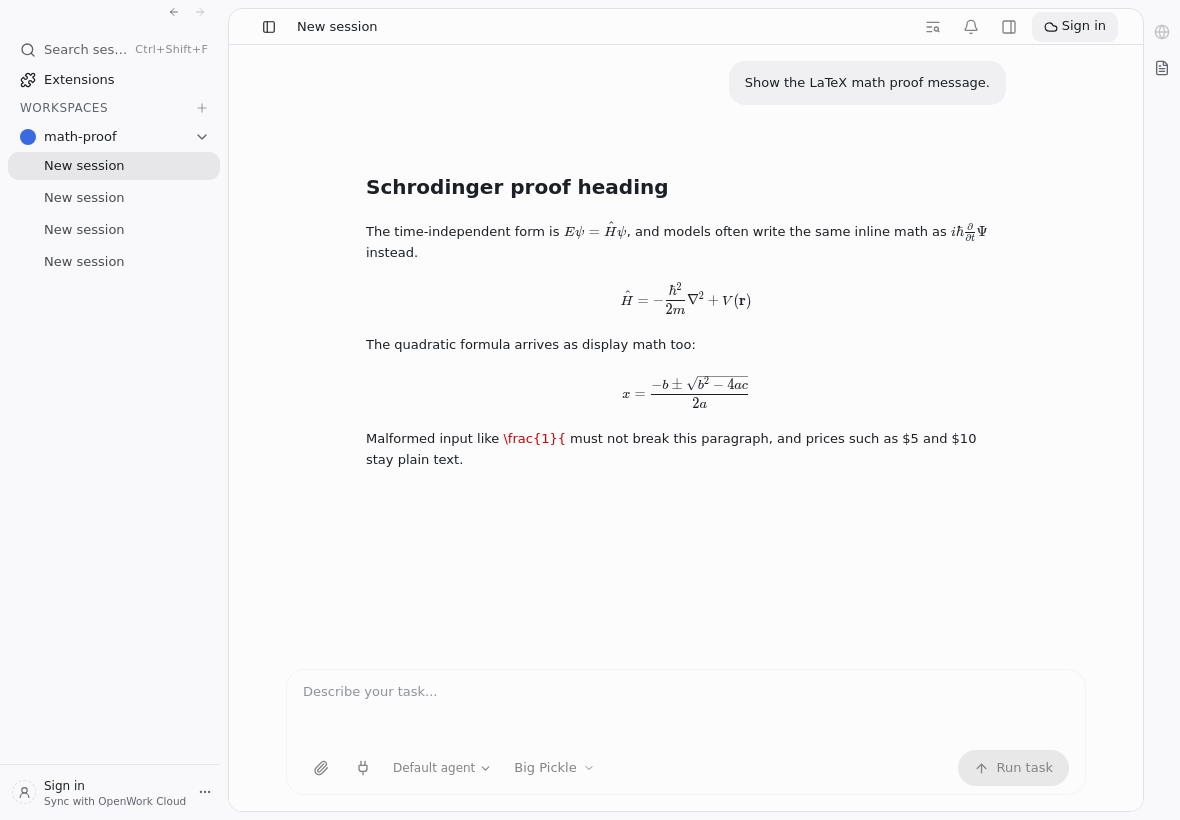

5. Malformed LaTeX and plain currency never break the surrounding message

   🎙 Malformed LaTeX degrades to plain visible source and ordinary prices stay untouched, so one bad formula never takes down the rest of the message.

   • ✅ Visible text does not include "Something went wrong"
   • 📸 markdown-math-04-malformed-latex-graceful.png — 7 validations passed

   • ✅ Script frame 1 narrated: "OpenWork opens an existing conversation and displays the session normally, with no error"
   • ✅ Script frame 2 narrated: "A technical answer arrives and the inline formulas read as real typeset math, so dollar-"
   • ✅ Script frame 3 narrated: "The same message shows centred display equations for the Hamiltonian and the quadratic f"
   • ✅ Script frame 4 narrated: "Every formula carries an accessible MathML copy underneath, so screen readers announce t"
   • ✅ Script frame 5 narrated: "Malformed LaTeX degrades to plain visible source and ordinary prices stay untouched, so "
