| Package | Installation | Role | Required |
|---|---|---|---|
| Homebridge v2.0.0 | Homebridge Wiki | HomeKit Bridge | Required |
| Homebridge UI | Homebridge UI Wiki | Homebridge User Interface | Required plugin |
| MELCloud | Plug-In Wiki | Plug-In | Required |
- For plugin < v4.6.0 use Homebridge UI <= v5.5.0.
- For plugin >= v4.6.0 use Homebridge UI >= v5.13.0.
- Support:
- Devices connected to MELCloud or MELCloud Home.
- Multiple accounts, buildings, floors, areas.
- Temperature display units
Celsius/Fahrenheit. - Assing individual operating mode for
Heat/Cool/Auto. - Presets, only MELCloud.
- Scenes, only MELCloud Home.
- Frost protection, only MELCloud Home.
- Overheat Protection, only MELCloud Home.
- Holiday Mode, only MELCloud Home.
- Physical lock controls
LOCK/UNLOCK, only MELCloud. - Functions, using extra
Buttons, switch toOFFrestore previous state. - Automations, shortcuts and Siri.
- External integrations, RESTFul, MQTT.
- Control devices over local network You need use ESP module and Tasmota Control plugin.
- Air Conditioner:
- Heater Cooler:
- Power
ON/OFF. - Operating mode
AUTO/HEAT/COOL/POWER OFF. - Temperature
HEATING/COOLING/AUTO. - Fan speed
OFF/1/2/3/4/5/AUTO. - Swing mode
AUTO/SWING. - Physical lock controls
LOCK/UNLOCK. - Temperature display unit
°F/°C.
- Power
- Thermostat:
- Power
ON/OFF. - Operating mode
POWER OFF/HEAT/COOL/AUTO. - Temperature
HEATING/COOLING/AUTO. - Temperature display unit
°F/°C.
- Power
- Buttons:
- For direct device control.
- Power
ON/OFF. - Operating mode
HEAT/DRY/COOL/FAN/AUTO. - Physical lock controls
LOCK/UNLOCK - Vane H mode
AUTO/1/2/3/4/5/SPLIT/SWING. - Vane V mode
AUTO/1/2/3/4/5/SWING. - Fan speed mode
AUTO/1/2/3/4/5. - Preset
SET/UNSET - Frost protection
ON/OFF/MINTEMP/MAXTEMP. - Overheat protection
ON/OFF/MINTEMP/MAXTEMP. - Holiday mode
ON/OFF. - Schedules
ON/OFF. - Scene
ON/OFF.
- Power
- For direct device control.
- Sensors:
- For automation and notifications.
- Power
ON/OFF. - Operating mode
HEAT/DRY/COOL/FAN/AUTO. - Physical lock controls
LOCK/UNLOCK. - Vane H mode
AUTO/1/2/3/4/5/SPLIT/SWING. - Vane V mode
AUTO/1/2/3/4/5/SWING. - Fan speed mode
AUTO/1/2/3/4/5/. - Preset
ACTIV/UNACTIV. - Room temperature.
- Outdoor temperature.
- Frost protection.
- Overheat protection.
- Holiday mode.
- Shedules control.
- Shedule active.
- Scene control.
- In standby.
- Is connected.
- Error.
- Power
- For automation and notifications.
- Heater Cooler:
- Heat Pump:
- Heater Cooler:
- Heat Pump:
- Power
ON/OFF. - Operating mode
AUTO/HEAT/COOL-POWER OFF/ON/ON. - Outdoor temperature
GET. - Physical lock controls all Zones and Hot Water Tank
LOCK/UNLOCK. - Temperature display unit
°F/°C.
- Power
- Zone 1 and 2:
- Operating mode heat
AUTO/HEAT/COOL-CURVE/HEAT ROOM/HEAT FLOW. - Operating mode cool
HEAT/COOL-FLOOR DRY UP/COOL ROOM/COOL FLOW. - Temperature
HEATING/COOLING. - Physical lock controls
LOCK/UNLOCK.
- Operating mode heat
- Hot Water Tank:
- Operating mode
AUTO/HEAT-AUTO/HEAT NOW. - Temperature
SET/GET. - Physical lock controls
LOCK/UNLOCK.
- Operating mode
- Heat Pump:
- Thermostat:
- Heat Pump:
- Power
ON/OFF. - Operating mode
AUTO/HEAT/COOL-POWER OFF/ON/ON. - Outdoor temperature
GET. - Temperature display unit
°F/°C.
- Power
- Zone 1 and 2:
- Operating mode heat
HEAT/COOL/AUTO-HEAT ROOM/HEAT FLOW/CURVE. - Operating mode cool
HEAT/COOL/AUTO-COOL ROOM/COOL FLOW/FLOOR DRY UP. - Temperature
HEATING/COOLING.
- Operating mode heat
- Hot Water Tank:
- Operating mode
HEAT/AUTO-HEAT NOW, AUTO. - Temperature
SET/GET.
- Operating mode
- Heat Pump:
- Buttons:
- For direct device control.
- Power
ON/OFF. - Operating mode
HEAT/COOL/CURVE/HOLIDAY/AUTO HOT WATER/ECO HOT WATER/FORCE HOT WATER. - Physical lock controls
LOCK/UNLOCK. - Preset
SET/UNSET. - Frost protection
ON/OFF/MINTEMP/MAXTEMP. - Holiday mode
ON/OFF. - Schedules
ON/OFF. - Scene
ON/OFF.
- Power
- For direct device control.
- Sensors:
- For automation and notifications.
- Power
ON/OFF. - Operating mode
HEAT/COOL/CURVE/HOLIDAY/AUTO HOT WATER/ECO HOT WATER/FORCE HOT WATER. - Physical lock controls
LOCK/UNLOCK. - Preset
ACTIV/UNACTIV. - Outdoor temperature.
- Zone 1 temperature.
- Zone 2 temperature.
- Water tank temperature.
- Flow Temperature Zone 1, 2, Hot Water.
- Return Temperature Zone 1, 2, Hot Water.
- Frost protection.
- Holiday mode.
- Shedules control.
- Shedule active.
- Scene control.
- In standby.
- Is connected.
- Error.
- Power
- For automation and notifications.
- Heater Cooler:
- Energy Recovery Ventilation Lossnay:
- Heater Cooler:
- Power
ON/OFF. - Operating mode
AUTO/HEAT/COOL/POWER OFF-AUTO, LOSSNAY, BYPASS, POWER OFF. - Fan speed
OFF/1/2/3/4/AUTO. - Temperature display unit
°F/°C.
- Power
- Thermostat:
- Power
ON/OFF. - Operating mode
POWER OFF/HEAT/COOL/AUTO-POWER OFF, LOSSNAY, BYPASS, AUTO. - Temperature display unit
°F/°C.
- Power
- Buttons:
- For direct device control.
- Power
ON/OFF. - Operating mode
LOSSNAY/BYPASS/AUTO/NIGHT PURGE. - Fan speed mode
AUTO/1/2/3/4. - Preset
SET/UNSET. - Holiday mode
ON/OFF. - Schedules
ON/OFF. - Scene
ON/OFF.
- Power
- For direct device control.
- Sensors:
- For automation and notifications.
- Power
ON/OFF. - Operating mode
LOSSNAY/BYPASS/AUTO/NIGHT PURGE. - Fan speed mode
AUTO/1/2/3/4. - Presets
ACTIV/UNACTIV. - Room temperature.
- Outdoor temperature.
- Supply temperature.
- Core maintenance.
- Filter maintenance.
- CO2 detected and level.
- PM2.5 air quality and level.
- Holiday mode.
- Shedules control.
- Shedule active.
- Scene control.
- In standby.
- Is connected.
- Error.
- Power
- For automation and notifications.
- Heater Cooler:
- In AUTO mode, the tile display current state based on current mode:
- HEATING mode, th tile display current state as HEATING - orange
- COOLING mode, the tile display current state as COOLING - blue
- DRY mode, the tile display current state as IDLE - black
- FAN mode, the tile display current state as IDLE - black
- IDLE mode, the tile display current state as IDLE - black
- INACTIVE mode, the tile display current state as INACTIVE - transparent
- Heather/Cooler
- In this mode we can set heathing threshold and cooling threshold temperature:
- Target temperature is calculated as a middle value between
LOandHIand the rest is calculated internally.
- Thermostat
- In this mode we can set only target temperature:
- Target temperature is send to device and calculated internally:
- Calculation method in device internally:
- If the room temperature
<Heating Setpoint, the unit will be set to HEAT with a setpoint of 23°C. - In HEAT, if the room temperature
>Heating Setpoint+1°C, the unit will be set to FAN. - In FAN, if the room temperature
>Cooling Setpoint, the unit will be set to COOL with a setpoint of 19°C. - In COOL, if the room temperature
<Cooling Setpoint-1°C, the unit will be set to FAN. - In FAN, if the room temperature
<Heating Setpoint, the unit will be set to HEAT with a setpoint of 23°C.
- If the room temperature

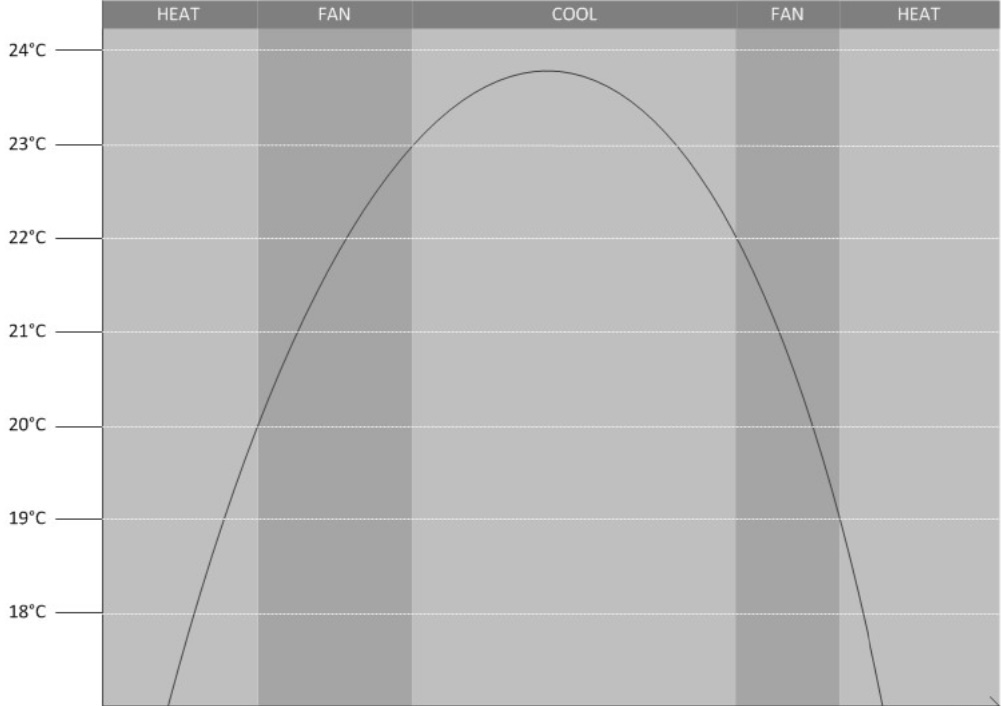

- The image shows Heating Setpoint of 19°C and a Cooling Setpoint of 23°C.
- Run this plugin as a Child Bridge (Highly Recommended), this prevent crash Homebridge if plugin crashes.
- Install and use Homebridge UI to configure this plugin.
- The
sample-config.jsoncan be edited and used as an alternative.
| Key | Description |
|---|---|
name |
Here set the own account name. |
user |
Here set the account credential (username). |
passwd |
Here set the account credential (password). |
language |
Here select the account language. |
type |
Here select the account type 0 - None / Disabled, 1 - MELCloud, 2 - MELCloud Home. |
ataDevices[] |
Array of ATA devices created automatically after login to MELCloud from plugin config UI. |
ataDevices[].id |
Read only data, do not change it. |
ataDevices[].type |
Read only data, do not change it. |
ataDevices[].name |
Here set Your own name Accessory Name which is exposed to the Homebridge / HomeKit. |
ataDevices[].displayType |
Here select device control mode 0 - None / Disabled, 1 - Heater / Cooler, 2 - Thermostat. |
ataDevices[].heatDryFanMode |
Here select the operatiing mode for Heat, if this mode is not supported, it will be disabled. |
ataDevices[].coolDryFanMode |
Here select the operatiing mode for Cool, if this mode is not supported, it will be disabled. |
ataDevices[].autoDryFanMode |
Here select the operatiing mode for Auto, if this mode is not supported, it will be disabled.. |
ataDevices[].temperatureSensor |
This enable extra Room temperature sensor to use with HomeKit automations. |
ataDevices[].temperatureOutdoorSensor |
This enable extra Outdoor temperature sensor to use with HomeKit automations. |
ataDevices[].inStandbySensor |
This enable In Standby Mode sensor to use with HomeKit automations. |
ataDevices[].connectSensor |
This enable Connect State sensor to use with HomeKit automations. |
ataDevices[].errorSensor |
This enable Error sensor to use with HomeKit automations. |
ataDevices[].remoteRoomTemperatureSupport |
This enable support to update Room Temperature with MQTT or RESTFul. |
ataDevices[].frostProtectionSupport |
This enable extra Frost Protection control and sensors to use with HomeKit automations. |
ataDevices[].overheatProtectionSupport |
This enable extra Overheat Protection control and sensors to use with HomeKit automations. |
ataDevices[].holidayModeSupport |
This enable extra Holiday Mode control and sensors to use with HomeKit automations. |
ataDevices[].presets[] |
Array of ATA device Presets created automatically after login to MELCloud from plugin config UI. |
ataDevices[].presets[].id |
Read only data, do not change it. |
ataDevices[].presets[].name |
Here set Your own name Preset Name which is exposed to the Homebridge / HomeKit. |
ataDevices[].presets[].displayType |
Here select display type in HomeKit, 0 - None / Disabled, 1 - Motion Sensor, 2 - Occupancy Sensor, 3 - Contact Sensor, 4 - Switch + Motion Sensor, 5 - Switch + Occupancy Sensor, 6 - Switch + Contact Sensor, 7 - Switch. |
ataDevices[].schedules[] |
Array of ATA device Schedules created automatically after login to MELCloud Home from plugin config UI. |
ataDevices[].schedules[].id |
Read only data, do not change it. |
ataDevices[].schedules[].name |
Here set Your own name Schedule Name which is exposed to the Homebridge / HomeKit. |
ataDevices[].schedules[].displayType |
Here select display type in HomeKit, 0 - None / Disabled, 1 - Motion Sensor, 2 - Occupancy Sensor, 3 - Contact Sensor, 4 - Switch + Motion Sensor, 5 - Switch + Occupancy Sensor, 6 - Switch + Contact Sensor, 7 - Switch. |
ataDevices[].scenes[].id |
Read only data, do not change it. |
ataDevices[].scenes[].name |
Here set Your own name Scene Name which is exposed to the Homebridge / HomeKit. |
ataDevices[].scenes[].displayType |
Here select display type in HomeKit, 0 - None / Disabled, 1 - Motion Sensor, 2 - Occupancy Sensor, 3 - Contact Sensor, 4 - Switch + Motion Sensor, 5 - Switch + Occupancy Sensor, 6 - Switch + Contact Sensor, 7 - Switch. |
ataDevices[].buttonsSensors[] |
Array of buttons sensors. |
ataDevices[].buttonsSensors[].name |
Here set Button Name which You want expose to the Homebridge / HomeKit. |
ataDevices[].buttonsSensors[].mode |
Here select button mode, VH - Vane Horizontal, VV - Vane Horizontal. |
ataDevices[].buttonsSensors[].displayType |
Here select display type in HomeKit, 0 - None / Disabled, 1 - Motion Sensor, 2 - Occupancy Sensor, 3 - Contact Sensor, 4 - Switch + Motion Sensor, 5 - Switch + Occupancy Sensor, 6 - Switch + Contact Sensor, 7 - Switch. |
ataDevices[].buttonsSensors[].namePrefix |
Here enable the accessory name as a prefix for button / sensor name. |
atwDevices[] |
Array of ATA devices created automatically after login to MELCloud from plugin config UI. |
atwDevices[].id |
Read only data, do not change it. |
atwDevices[].type |
Read only data, do not change it. |
atwDevices[].name |
Here set Your own name Accessory Name which is exposed to the Homebridge / HomeKit. |
atwDevices[].displayType |
Here select main control mode None / Disabled, Heater / Cooler, Thermostat. |
atwDevices[].hideZone |
Here select which zone need to be hidden None / Disabled, Heat Pump, Heat Pump / Zone 1, Heat Pump / Zone 1 / Hot Water, Heat Pump / Zone 1 / Zone 2, Heat Pump / Hot Water,Heat Pump / Hot Water / Zone 2, Heat Pump / Zone 2, Zone 1, Zone 1 / Hot Water, Zone 1 / Hot Water / Zone 2, Zone 1 / Zone 2, Hot Water, Hot Water / Zone 2, Zone 2, All. |
atwDevices[].temperatureSensor |
This enable extra Room temperature sensor to use with HomeKit automations. |
atwDevices[].temperatureFlowSensor |
This enable extra Flow temperature sensor to use with HomeKit automations. |
atwDevices[].temperatureReturnSensor |
This enable extra Return temperature sensor to use with HomeKit automations. |
atwDevices[].temperatureFlowZone1Sensor |
This enable extra Flow Zone 1 temperature sensor to use with HomeKit automations. |
atwDevices[].temperatureReturnZone1Sensor |
This enable extra Return Zone 1 temperature sensor to use with HomeKit automations. |
atwDevices[].temperatureFlowWaterTankSensor |
This enable extra Flow Water Tank temperature sensor to use with HomeKit automations. |
atwDevices[].temperatureReturnWaterTankSensor |
This enable extra Return Water Tank temperature sensor to use with HomeKit automations. |
atwDevices[].temperatureFlowZone2Sensor |
This enable extra Flow Zone 2 temperature sensor to use with HomeKit automations. |
atwDevices[].temperatureReturnZone2Sensor |
This enable extra Return Zone 2 temperature sensor to use with HomeKit automations. |
atwDevices[].inStandbySensor |
This enable In Standby Mode sensor to use with HomeKit automations. |
atwDevices[].connectSensor |
This enable Connect State sensor to use with HomeKit automations. |
atwDevices[].errorSensor |
This enable Error sensors to use with HomeKit automations. |
atwDevices[].holidayModeSupport |
This enable extra Holiday Mode control and sensors to use with HomeKit automations. |
atwDevices[].presets[] |
Array of ATW device Presets created automatically after login to MELCloud from plugin config UI. |
atwDevices[].presets[].id |
Read only data, do not change it. |
atwDevices[].presets[].name |
Here set Your own name Preset Name which is exposed to the Homebridge/HomeKit. |
atwDevices[].presets[].displayType |
Here select display type in HomeKit, 0 - None/Disabled, 1 - Motion Sensor, 2 - Occupancy Sensor, 3 - Contact Sensor, 4 - Switch + Motion Sensor, 5 - Switch + Occupancy Sensor, 6 - Switch + Contact Sensor, 7 - Switch. |
atwDevices[].schedules[] |
Array of ATW device Schedules created automatically after login to MELCloud Home from plugin config UI. |
atwDevices[].schedules[].id |
Read only data, do not change it. |
atwDevices[].schedules[].name |
Here set Your own name Schedule Name which is exposed to the Homebridge/HomeKit. |
atwDevices[].schedules[].displayType |
Here select display type in HomeKit, 0 - None/Disabled, 1 - Motion Sensor, 2 - Occupancy Sensor, 3 - Contact Sensor, 4 - Switch + Motion Sensor, 5 - Switch + Occupancy Sensor, 6 - Switch + Contact Sensor, 7 - Switch. |
atwDevices[].scenes[].id |
Read only data, do not change it. |
atwDevices[].scenes[].name |
Here set Your own name Scene Name which is exposed to the Homebridge/HomeKit. |
atwDevices[].scenes[].displayType |
Here select display type in HomeKit, 0 - None/Disabled, 1 - Motion Sensor, 2 - Occupancy Sensor, 3 - Contact Sensor, 4 - Switch + Motion Sensor, 5 - Switch + Occupancy Sensor, 6 - Switch + Contact Sensor, 7 - Switch. |
atwDevices[].buttonsSensors[] |
Array of buttons sensors. |
atwDevices[].buttonsSensors[].name |
Here set Button Name which You want expose to the Homebridge / HomeKit. |
atwDevices[].buttonsSensors[].mode |
Here select button mode. |
atwDevices[].buttonsSensors[].displayType |
Here select display type in HomeKit, 0 - None / Disabled, 1 - Motion Sensor, 2 - Occupancy Sensor, 3 - Contact Sensor, 4 - Switch + Motion Sensor, 5 - Switch + Occupancy Sensor, 6 - Switch + Contact Sensor, 7 - Switch. |
atwDevices[].buttonsSensors[].namePrefix |
Here enable the accessory name as a prefix for button / sensor name. |
ervDevices[] |
Array of ATA devices created automatically after login to MELCloud from plugin config UI. |
ervDevices[].id |
Read only data, do not change it. |
ervDevices[].type |
Read only data, do not change it. |
ervDevices[].name |
Here set Your own name Accessory Name which is exposed to the Homebridge / HomeKit. |
ervDevices[].displayType |
Here select main control mode None / Disabled, Heater / Cooler, Thermostat. |
ervDevices[].temperatureSensor |
This enable extra Room temperature sensor to use with HomeKit automations. |
ervDevices[].temperatureOutdoorSensor |
This enable extra Outdoor temperature sensor to use with HomeKit automations. |
ervDevices[].temperatureSupplySensor |
This enable extra Supply temperature sensor to use with HomeKit automations. |
atwDevices[].inStandbySensor |
This enable In Standby Mode sensor to use with HomeKit automations. |
ervDevices[].connectSensor |
This enable Connect State sensor to use with HomeKit automations. |
ervDevices[].errorSensor |
This enable Error sensors to use with HomeKit automations. |
ervDevices[].holidayModeSupport |
This enable extra Holiday Mode control and sensors to use with HomeKit automations. |
ervDevices[].presets[] |
Array of ERV device Presets created automatically after login to MELCloud from plugin config UI. |
ervDevices[].presets[].id |
Read only data, do not change it. |
ervDevices[].presets[].name |
Here set Your own name Preset Name which is exposed to the Homebridge / HomeKit. |
ervDevices[].presets[].displayType |
Here select display type in HomeKit, 0 - None / Disabled, 1 - Motion Sensor, 2 - Occupancy Sensor, 3 - Contact Sensor, 4 - Switch + Motion Sensor, 5 - Switch + Occupancy Sensor, 6 - Switch + Contact Sensor, 7 - Switch. |
ervDevices[].schedules[] |
Array of ERV device Schedules created automatically after login to MELCloud Home from plugin config UI. |
ervDevices[].schedules[].id |
Read only data, do not change it. |
ervDevices[].schedules[].name |
Here set Your own name Schedule Name which is exposed to the Homebridge / HomeKit. |
ervDevices[].schedules[].displayType |
Here select display type in HomeKit, 0 - None / Disabled, 1 - Motion Sensor, 2 - Occupancy Sensor, 3 - Contact Sensor, 4 - Switch + Motion Sensor, 5 - Switch + Occupancy Sensor, 6 - Switch + Contact Sensor, 7 - Switch. |
ervDevices[].scenes[].id |
Read only data, do not change it. |
ervDevices[].scenes[].name |
Here set Your own name Scene Name which is exposed to the Homebridge / HomeKit. |
ervDevices[].scenes[].displayType |
Here select display type in HomeKit, 0 - None / Disabled, 1 - Motion Sensor, 2 - Occupancy Sensor, 3 - Contact Sensor, 4 - Switch + Motion Sensor, 5 - Switch + Occupancy Sensor, 6 - Switch + Contact Sensor, 7 - Switch. |
ervDevices[].buttonsSensors[] |
Array of buttons sensors. |
ervDevices[].buttonsSensors[].name |
Here set Button Name which You want expose to the Homebridge / HomeKit. |
ervDevices[].buttonsSensors[].mode |
Here select button mode. |
ervDevices[].buttonsSensors[].displayType |
Here select display type in HomeKit, 0 - None / Disabled, 1 - Motion Sensor, 2 - Occupancy Sensor, 3 - Contact Sensor, 4 - Switch + Motion Sensor, 5 - Switch + Occupancy Sensor, 6 - Switch + Contact Sensor, 7 - Switch. |
ervDevices[].buttonsSensors[].namePrefix |
Here enable the accessory name as a prefix for button / sensor name. |
refreshInterval |
Here set the background account data refresh time in (sec) , only for old MELCLoud, default 120s. |
log{} |
Log object. |
log.deviceInfo |
This enable log device info will be displayed by every connections device to the network. |
log.success |
This enable success log will be displayed in console. |
log.info |
This enable info log will be displayed in console. |
log.warn |
This enable warn log will be displayed in console. |
log.error |
This enable error log will be displayed in console. |
log.debug |
This enable debug log will be displayed in console. |
restFul{} |
RSTful object. |
restFul.enable |
This enable RESTful server will start automatically and respond to any path request. |
mqtt{} |
MQTT object. |
mqtt.enable |
This enable MQTT Broker will start automatically and publish all awailable PV data. |
mqtt.host |
Here set the IP Address or Hostname for MQTT Broker. |
mqtt.port |
Here set the Port for MQTT Broker, default 1883. |
mqtt.clientId |
Here optional set the Client Id of MQTT Broker. |
mqtt.prefix |
Here set the Prefix for Topic or leave empty. |
mqtt.auth{} |
MQTT authorization object. |
mqtt.auth.enable |
Here enable authorization for MQTT Broker. |
mqtt.auth.user |
Here set the MQTT Broker user. |
mqtt.auth.passwd |
Here set the MQTT Broker password. |
- Port:
- MELCLoud, last 4 numbers of
device Id, correct port is displayed in HB log during start. - MELCLoud Home, start at
30000, correct port is displayed in HB log during start.
- MELCLoud, last 4 numbers of
- POST data as a JSON Object
{OperationMode: 8}. - Header content type must be
application/json. - Path
statusresponse all available paths.
| Method | URL | Path | Response | Type |
|---|---|---|---|---|
| GET | http//ip:port |
info, state |
{"Power": true, "SetTemperature": 21.5} |
JSON object. |
| Method | URL | Key | Value | Type | Description |
|---|---|---|---|---|---|
| Air Conditioner | |||||
| POST | http//ip:port |
Power |
true, false |
boolean | Power state. |
http//ip:port |
ProhibitSetTemperature |
true, false |
boolean | Lock set temperature (Only MELCloud). | |
http//ip:port |
ProhibitOperationMode |
true, false |
boolean | Lock set operating mode (Only MELCloud). | |
http//ip:port |
ProhibitPower |
true, false |
boolean | Lock set power (Only MELCloud). | |
http//ip:port |
OperationMode |
1 - Heat, 2 - Dry, 3 - Cool, 7 - Fan, 8 - Auto |
integer | Operating mode. | |
http//ip:port |
FanSpeed |
0 - Auto, 1, 2, 3, 4, 5, 6 |
integer | Fan speed. | |
http//ip:port |
VaneHorizontalDirection |
0, 1, 2, 3, 4, 5, 8 - Split, 12 - Swing |
integer | Vane H mode. | |
http//ip:port |
VaneVerticalDirection |
0, 1, 2, 3, 4, 5, 7 - Swing |
integer | Vane V mode. | |
http//ip:port |
SetTemperature |
0.0 |
float | Room temperature. | |
http//ip:port |
DefaultCoolingSetTemperature |
0.0 |
float | Default cooling temperature. | |
http//ip:port |
DefaultHeatingSetTemperature |
0.0 |
float | Default heating temperature. | |
http//ip:port |
FrostProtection |
true, false |
boolean | Frost protectin (Only MELCloud Home). | |
http//ip:port |
OverheatProtection |
true, false |
boolean | Overheat protection (Only MELCloud Home). | |
http//ip:port |
Schedules |
true, false |
boolean | Schedules (Only MELCloud Home). | |
http//ip:port |
HolidayMode |
true, false |
boolean | Holiday mode. | |
http//ip:port |
RemoteRoomTemperature |
23.0 |
float | Remote room temperature. | |
| Heat Pump | |||||
| POST | http//ip:port |
Power |
true, false |
boolean | Power state. |
http//ip:port |
OperationModeZone1 |
0 - Heat Room, 1 - Heat Flow, 2 - Heat Curve, 3 - Cool Room, 4 - Cool Flow, 5 - Flor Dry Up |
integer | Operating mode zone 1. | |
http//ip:port |
SetTemperatureZone1 |
0.0 |
float | Temperature zone 1. | |
http//ip:port |
SetHeatFlowTemperatureZone1 |
0.0 |
float | Heat flow temperature zone 1. | |
http//ip:port |
SetCoolFlowTemperatureZone1 |
0.0 |
float | Cool flow temperature zone 1. | |
http//ip:port |
ProhibitZone1 |
true, false |
boolean | Lock control zone 1 (Only MELCloud). | |
http//ip:port |
ForcedHotWaterMode |
true, false |
boolean | Force hot water. | |
http//ip:port |
EcoHotWater |
true, false |
boolean | Eco hot water (Only MELCloud). | |
http//ip:port |
SetTankWaterTemperature |
0.0 |
float | Hot water temperature. | |
http//ip:port |
ProhibitHotWater |
true, false |
boolean | Lock control hot water. | |
http//ip:port |
OperationModeZone2 |
0 - Heat Room, 1 - Heat Flow, 2 - Heat Curve, 3 - Cool Room, 4 - Cool Flow, 5 - Flor Dry Up |
integer | Operating mode zone 2. | |
http//ip:port |
SetTemperatureZone2 |
0.0 |
float | Temperature zone 2. | |
http//ip:port |
SetHeatFlowTemperatureZone2 |
0.0 |
float | Heat flow temperature zone 2. | |
http//ip:port |
SetCoolFlowTemperatureZone2 |
0.0 |
float | Cool flow temperature zone 2. | |
http//ip:port |
ProhibitZone2 |
true, false |
boolean | Lock control zone 2 (Only MELCloud). | |
http//ip:port |
FrostProtection |
true, false |
boolean | Frost protectin (Only MELCloud Home). | |
http//ip:port |
Schedules |
true, false |
boolean | Schedules (Only MELCloud Home). | |
http//ip:port |
HolidayMode |
true, false |
boolean | Holiday mode. | |
| Energy Recovery Ventilation | |||||
| POST | http//ip:port |
Power |
true, false |
boolean | Power state. |
http//ip:port |
NightPurgeMode |
true, false |
boolean | Night purge mode. | |
http//ip:port |
OperationMode |
1 - Heat, 3 - Cool, 7 - Fan, 8 - Auto |
integer | Operating mode. | |
http//ip:port |
VentilationMode |
0 - Lossnay, 1 - Bypass, 2 - Auto |
integer | Ventilation mode. | |
http//ip:port |
SetFanSpeed |
0 - Auto, 1, 2, 3, 4 |
integer | Fan speed. | |
http//ip:port |
SetTemperature |
0.0 |
float | Room temperature. | |
http//ip:port |
DefaultCoolingSetTemperature |
0.0 |
float | Default cooling temperature. | |
http//ip:port |
DefaultHeatingSetTemperature |
0.0 |
float | Default heating temperature. | |
http//ip:port |
Schedules |
true, false |
boolean | Schedules (Only MELCloud Home). | |
http//ip:port |
HolidayMode |
true, false |
boolean | Holiday mode. |
- Subscribe data as a JSON Object
{"Power": true}
| Direction | Topic | Message | Type |
|---|---|---|---|
| Publish | Info, State |
{"Power": true, "SetTemperature": 21.5} |
JSON object. |
| Method | Topic | Key | Value | Type | Description |
|---|---|---|---|---|---|
| Air Conditioner | |||||
| Subscribe | Set |
Power |
true, false |
boolean | Power state. |
Set |
ProhibitSetTemperature |
true, false |
boolean | Lock set temperature (Only MELCloud). | |
Set |
ProhibitOperationMode |
true, false |
boolean | Lock set operating mode (Only MELCloud). | |
Set |
ProhibitPower |
true, false |
boolean | Lock set power (Only MELCloud). | |
Set |
OperationMode |
1 - Heat, 2 - Dry, 3 - Cool, 7 - Fan, 8 - Auto |
integer | Operating mode. | |
Set |
FanSpeed |
0 - Auto, 1, 2, 3, 4, 5, 6 |
integer | Fan speed. | |
Set |
VaneHorizontalDirection |
0, 1, 2, 3, 4, 5, 8 - Split, 12 - Swing |
integer | Vane H mode. | |
Set |
VaneVerticalDirection |
0, 1, 2, 3, 4, 5, 7 - Swing |
integer | Vane V mode. | |
Set |
SetTemperature |
0.0 |
float | Room temperature. | |
Set |
DefaultCoolingSetTemperature |
23.0 |
float | Default cooling temperature. | |
Set |
DefaultHeatingSetTemperature |
21.0 |
float | Default heating temperature. | |
Set |
FrostProtection |
true, false |
boolean | Frost protectin (Only MELCloud Home). | |
Set |
OverheatProtection |
true, false |
boolean | Overheat protection (Only MELCloud Home). | |
Set |
Schedules |
true, false |
boolean | Schedules (Only MELCloud Home). | |
Set |
HolidayMode |
true, false |
boolean | Holiday mode. | |
Set |
RemoteRoomTemperature |
23.0 |
float | Remote room temperature. | |
| Heat Pump | |||||
| Subscribe | Set |
Power |
true, false |
boolean | Power state. |
Set |
OperationModeZone1 |
0 - Heat Room, 1 - Heat Flow, 2 - Heat Curve, 3 - Cool Room, 4 - Cool Flow, 5 - Flor Dry Up |
integer | Operating mode zone 1. | |
Set |
SetTemperatureZone1 |
0.0 |
float | Temperature zone 1. | |
Set |
SetHeatFlowTemperatureZone1 |
0.0 |
float | Heat flow temperature zone 1. | |
Set |
SetCoolFlowTemperatureZone1 |
0.0 |
float | Cool flow temperature zone 1. | |
Set |
ProhibitZone1 |
true, false |
boolean | Lock control zone 1 (Only MELCloud). | |
Set |
ForcedHotWaterMode |
true, false |
boolean | Force hot water. | |
Set |
EcoHotWater |
true, false |
boolean | Eco hot water (Only MELCloud). | |
Set |
SetTankWaterTemperature |
0.0 |
float | Hot water temperature. | |
Set |
ProhibitHotWater |
true, false |
boolean | Lock control hot water. | |
Set |
OperationModeZone2 |
0 - Heat Room, 1 - Heat Flow, 2 - Heat Curve, 3 - Cool Room, 4 - Cool Flow, 5 - Flor Dry Up |
integer | Operating mode zone 2. | |
Set |
SetTemperatureZone2 |
0.0 |
float | Temperature zone 2. | |
Set |
SetHeatFlowTemperatureZone2 |
0.0 |
float | Heat flow temperature zone 2. | |
Set |
SetCoolFlowTemperatureZone2 |
0.0 |
float | Cool flow temperature zone 2. | |
Set |
ProhibitZone2 |
true, false |
boolean | Lock control zone 2 (Only MELCloud). | |
Set |
FrostProtection |
true, false |
boolean | Frost protectin (Only MELCloud Home). | |
Set |
Schedules |
true, false |
boolean | Schedules (Only MELCloud Home). | |
Set |
HolidayMode |
true, false |
boolean | Holiday mode. | |
| Energy Recovery Ventilation | |||||
| Subscribe | Set |
Power |
true, false |
boolean | Power state. |
Set |
NightPurgeMode |
true, false |
boolean | Night purge mode. | |
Set |
OperationMode |
1 - Heat, 3 - Cool, 7 - Fan, 8 - Auto |
integer | Operating mode. | |
Set |
VentilationMode |
0 - Lossnay, 1 - Bypass, 2 - Auto |
integer | Ventilation mode. | |
Set |
SetFanSpeed |
0 - Auto, 1, 2, 3, 4 |
integer | Fan speed. | |
Set |
SetTemperature |
0.0 |
float | Room temperature. | |
Set |
DefaultCoolingSetTemperature |
23.0 |
float | Default cooling temperature. | |
Set |
DefaultHeatingSetTemperature |
21.0 |
float | Default heating temperature. | |
Set |
Schedules |
true, false |
boolean | Schedules (Only MELCloud Home). | |
Set |
HolidayMode |
true, false |
boolean | Holiday mode. |
