Homebridge Xbox TV

Package Requirements

Package	Installation	Role	Required
Homebridge	Homebridge Wiki	HomeKit Bridge	Required
Homebridge UI	Homebridge UI Wiki	Homebridge Web User Interface	Required
Xbox TV	Plug-In Wiki	Homebridge Plug-In	Required

Warning

• For plugin < v4.1.0 use Homebridge UI <= v5.5.0.
• For plugin >= v4.1.0 use Homebridge UI >= v5.13.0.

About The Plugin

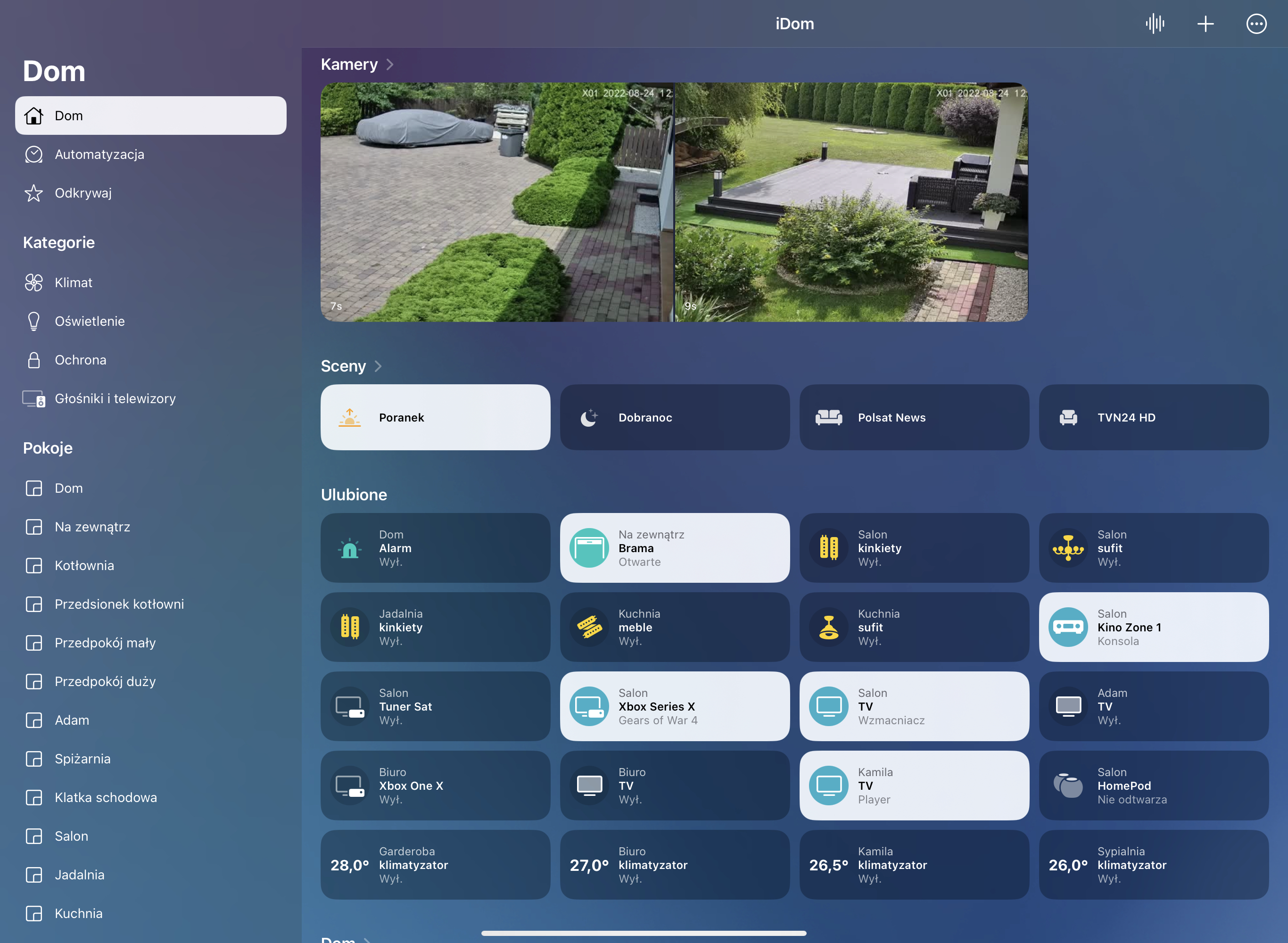

• Power ON/OFF short press tile in HomeKit app.
• Reboot Console with button, rquired webApiControl enabled.
• Record Game DVR with button, rquired webApiControl enabled.

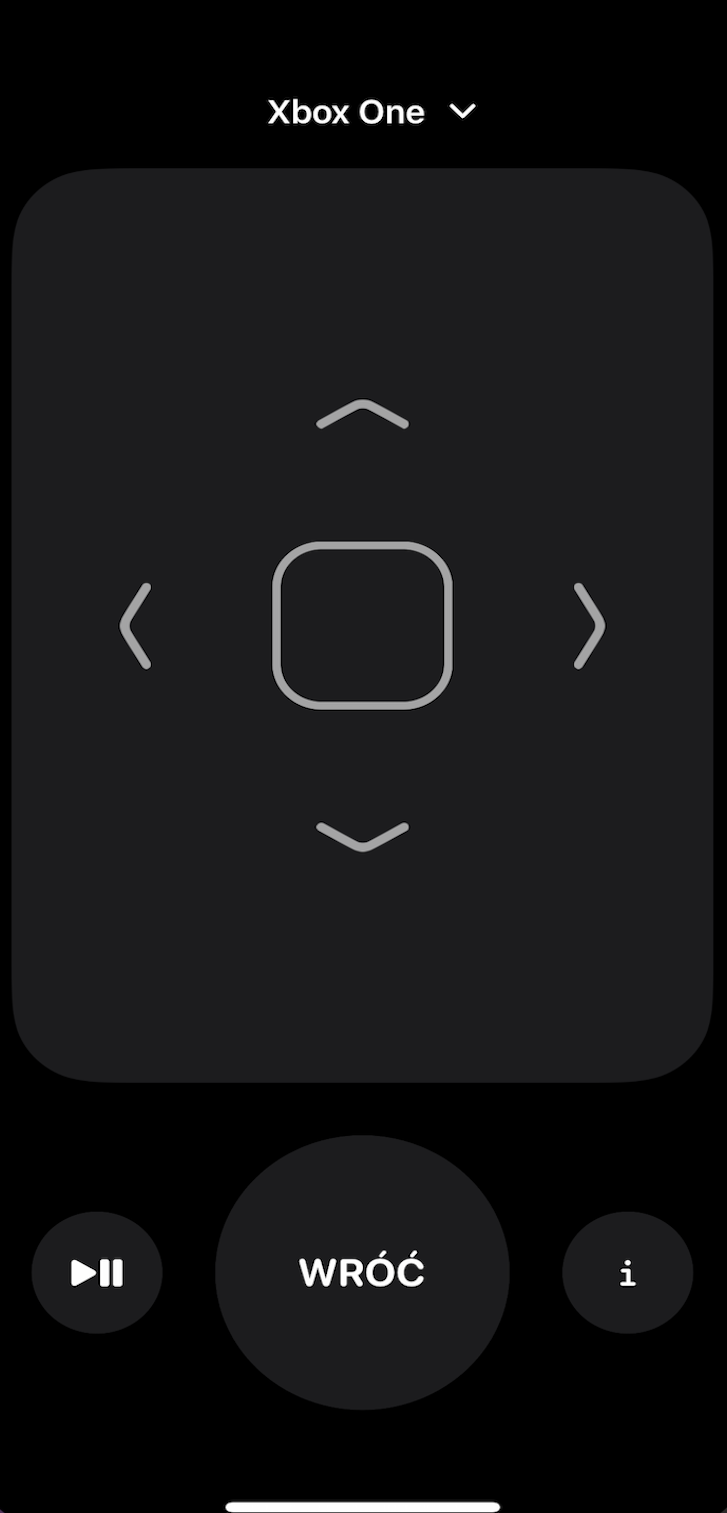

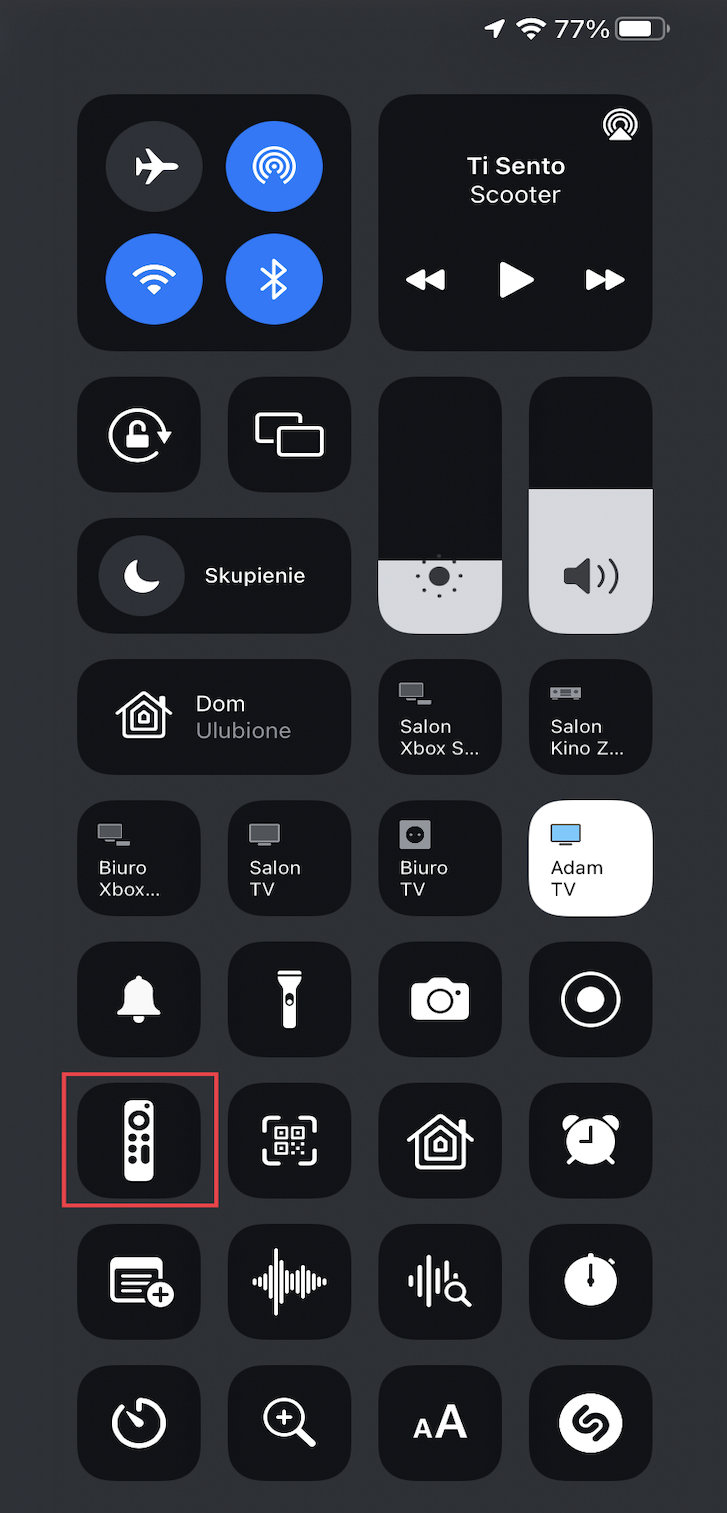

• RC/Media/Volume control from RC app on iPhone/iPad and possible over web/local api.
• Speaker control from RC app on iPhone/iPad Speaker Service.
• Legacy Volume/Mute control is possible throught extra lightbulb/fan (slider).
• Apps, Inputs, Games can be switched if webApiControl is enabled and console is authorized.
• Siri can be used for all functions, some times need to be created legacy buttons/switches/sensors.
• Automations can be used for all functions, some times need to be created legacy buttons/switches/sensors.
• Support external integrations, RESTFul, MQTT.

Authorization Manager

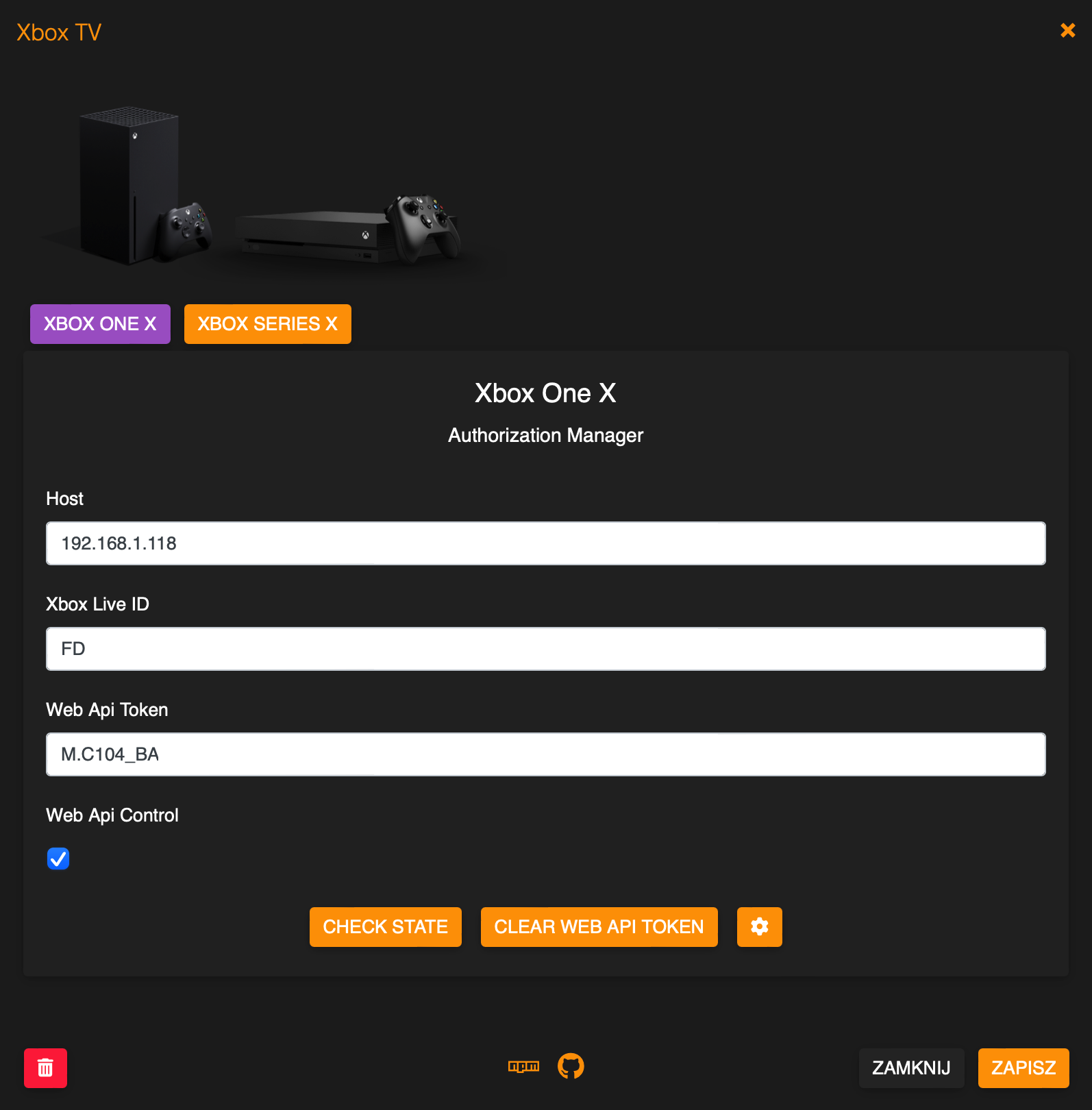

• First of all please use built in Authorization Manager.
  • Start new authorization need remove old token first, to clear token use Authorization Manager GUI.
  • Make sure Your web browser do not block pop-up window, if Yes allow pop-up window for this app.

Configuration

• Device must have Instant-on power mode enabled
  • Profile & System > Settings > General > Power mode & startup
  • Console need to allow connect from any 3rd app. Allow Connections from any device should be enabled.
  • Profile & System > Settings > Devices & Connections > Remote features > Xbox app preferences.
• Run this plugin as a Child Bridge (Highly Recommended), this prevent crash Homebridge if plugin crashes.
• Install and use Homebridge UI to configure this plugin.
• The sample-config.json can be edited and used as an alternative (advanced users).

Key	Description
name	Here set the accessory Name to be displayed in Homebridge/HomeKit.
host	Here set the Hsostname or Address IP of Console.
xboxLiveId	On your console select Profile > Settings > System > Console info, listed as Xbox network device ID. You can only find the Xbox network device ID in Settings on your console, this is different from your console serial number.
displayType	Accessory type to be displayed in Home app: 0 - None/Disabled, 1 - Television , 2 - TV Set Top Box, 3 - TV Streaming Stick, 4 - Audio Receiver.
webApi{}	Web Api object.
webApi.enable	This enable console control over Web Api. Additional functions are available in Advanced Settings section.
webApi.token	Required if webApiControl enabled, use Authorization Manager to get it.
webApi.clientId	Here set your own Client Id from Azure AD or leave empty if you do not have own account.
webApi.clientSecret	Here set your Client Secret from Azure AD or leave empty if you do not have own account.
inputs{}	Inputs object.
inputs.getFromDevice	If enabled, apps will be loaded from device, only available if webApiControl enabled.
inputs.filterGames	If enabled, Games will be hidden and not displayed in the inputs list, only available if webApiControl enabled.
inputs.filterApps	If enabled, Apps will be hidden and not displayed in the inputs list, only available if webApiControl enabled.
inputs.filterSystemApps	If enabled, System Apps (Accessory, Microsoft Store, Television) will be hidden and not displayed in the inputs list, only available if webApiControl enabled.
inputs.filterDlc	If enabled, Dlc will be hidden and not displayed in the inputs list, only available if webApiControl enabled.
inputs.displayOrder	Here select display order of the inputs list, 0 -None, 1 -Ascending by Name, 2 - Descending by Name, 3 - Ascending by Reference, 4 - Ascending by Reference.
inputs.data[]	Inputs data array.
inputs.data[].name	Here set Input Name which You want expose to the Homebridge/HomeKit, Screensaver, Television, TV Settings, Dashboard, Accessory, Settings, Network Troubleshooter, Microsoft Store, Xbox Guide are created by default.
inputs.data[].reference	Required to identify current running app.
inputs.data[].oneStoreProductId	Required to switch apps.
inputs.data[].contentType	Here select from available content types.
buttons[]	Buttons array.
buttons[].displayType	Here select display type in HomeKit app, possible 0 - None/Disabled, 1 - Outlet, 2 - Switch.
buttons[].name	Here set Button Name which You want expose to the Homebridge/HomeKit.
buttons[].mode	Here select button mode, 0 - Media Control, 1 - Game Pad Control, 2 - TV Remote Control, 3 - Console Control, 4 - Game/App Control.
buttons[].mediaCommand	Here select media control command.
buttons[].gamePadCommand	Here select game pad control command.
buttons[].tvRemoteCommand	Here select tv remote control command.
buttons[].consoleControlCommand	Here select console control command.
buttons[].gameAppControlCommand	Here set oneStoreProductId, only possible if webApiControl enabled.
buttons[].namePrefix	Here enable/disable the accessory name as a prefix for button name.
sensors[]	Sensors array.
sensors[].displayType	Here choose the sensor type to be exposed in HomeKit app, possible 0 - None/Disabled, 1 - Motion Sensor, 2 - Occupancy Sensor, 3 - Contact Sensor.
sensors[].mode	Here choose the sensor mode, possible 0 - App / Games, 1 - Power, 2 - Volume, 3 - Mute, 4 - Screen Saver, 5 - Play State.
sensors[].name	Here set own sensor Name which You want expose to the Homebridge/HomeKit.
sensors[].reference	Here set mode Reference like Xbox.Dashboard_8wekyb3d8bbwe!Xbox.Dashboard.Application, sensor fired on switch to this reference.
sensors[].pulse	Here enable sensor pulse, sensor send pulse and fired on every value change of selected mode.
sensors[].namePrefix	Here enable the accessory name as a prefix for sensor name.
sensors[].level	Here set Level between 0-100, sensor fired on this level.
volume{}	Volume object.
volume.displayType	Here choice what a additional volume control mode You want to use 0 - None/Disabled, 1 - Lightbulb, 2 - Fan, 3 - TV Speaker (only hardware buttons on R.C. app), 4 - TV Speaker / Lightbulb, 5 - TV Speaker / Fan.
volume.name	Here set Your own volume control name or leave empty.
volume.namePrefix	Here enable/disable the accessory name as a prefix for volume control name.
infoButtonCommand	Here select the function of I button in RC app.
log{}	Log object.
log.deviceInfo	If enabled, log device info will be displayed by every connections device to the network.
log.sSuccess	If enabled, success log will be displayed in console.
log.info	If enabled, info log will be displayed in console.
log.warn	If enabled, warn log will be displayed in console.
log.error	If enabled, error log will be displayed in console.
log.debug	If enabled, debug log will be displayed in console.
restFul{}	RESTFul object.
restFul.enable	If enabled, RESTful server will start automatically and respond to any path request.
restFul.port	Here set the listening Port for RESTful server.
mqtt{}	MQTT object.
mqtt.enable	If enabled, MQTT Broker will start automatically and publish all awailable PV data.
mqtt.host	Here set the IP Address or Hostname for MQTT Broker.
mqtt.port	Here set the Port for MQTT Broker, default 1883.
mqtt.clientId	Here optional set the Client Id of MQTT Broker.
mqtt.prefix	Here set the Prefix for Topic or leave empty.
mqtt.auth{}	MQTT authorization object.
mqtt.auth.enable	Here enable authorization for MQTT Broker.
mqtt.auth.user	Here set the MQTT Broker user.
mqtt.auth.passwd	Here set the MQTT Broker password.
reference, oneStoreProductId	If web Api enabled then all available in ./homebridge/xboxTv/inputs_xxxxxx file.

Create App on Azure AD

• Go to Azure Portal
• Register new App + New registration
  • Enter a name for your app
  • Set Supported account types to Personal Microsoft accounts only
  • Click register
  • Choose Redirect URIs -> Add a Redirect URI
  • Click Add a platform -> Mobile and desktop applications
  • Enter custom redirect URI http://localhost:8888/auth/callback
• From the overview of your app page, copy Application (client) ID to webApiClientId
• Save restart plugin and authorize console again and have fun.

RESTFul Integration

• POST data as a JSON Object {Power: true}, content type must be application/json
• Path status response all available paths.

Method	URL	Path	Response	Type
GET	http//ip:port	info, state, consoleslist, profile, apps, storages, status.	{"power": true, "app": Xbox.Dashboard_8wekyb3d8bbwe!Xbox.Dashboard.Application}	JSON object.

Method	URL	Key	Value	Type	Description
POST	http//ip:port	Power	true, false	boolean	Power state.
	http//ip:port	App	Xbox.Dashboard_8wekyb3d8bbwe!Xbox.Dashboard.Application	string	Set app.
	http//ip:port	RcControl	fastForward	string	Send RC command.
	http//ip:port	Volume	up, down	string	Set volume.
	http//ip:port	Mute	true, false	boolean	Set mute.

MQTT Integration

• Subscribe data as a JSON Object {App: "Xbox.Dashboard_8wekyb3d8bbwe!Xbox.Dashboard.Application"}

Method	Topic	Message	Type
Publish	Info, State, Consoles List, Profile, Apps, Storages, Status	{"power": true, "app": Xbox.Dashboard_8wekyb3d8bbwe!Xbox.Dashboard.Application}	JSON object.

Method	Topic	Key	Value	Type	Description
Subscribe	Set	Power	true, false	boolean	Power state.
	Set	App	Xbox.Dashboard_8wekyb3d8bbwe!Xbox.Dashboard.Application	string	Set app.
	Set	RcControl	fastForward	string	Send RC command.
	Set	Volume	up, down	string	Set volume.
	Set	Mute	true, false	boolean	Set mute.
