feat: support adding custom editors to Studio [BB-4060]

[Agrendalath]

Description

This:

1. Introduces a variable for the Course Outline view in Studio.
   A custom theme can override it to add new editors.
2. Exports a function for creating new editor modals.
   A custom theme can use it to create editors without adding boilerplate code.
3. Adds a pluggable override for XBlock fields that are passed to the Studio.
   A plugin can inject a custom field here.

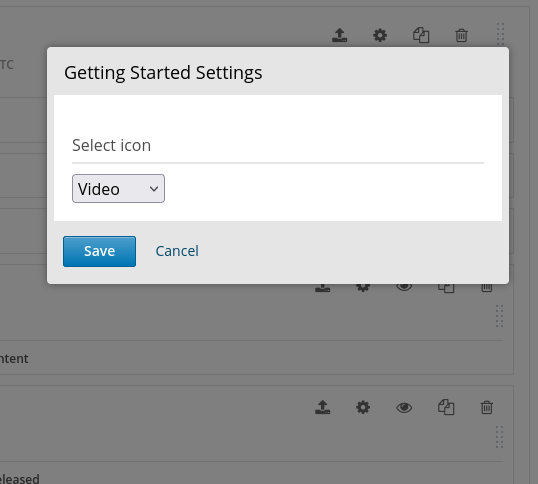

An example custom editor can look like this. The fa-eye icon is a button for opening it.

Jira

OSPR-5764

Sandbox

https://pr27466.sandbox.opencraft.hosting

Prerequisites

1. custom-unit-icons plugin.
2. custom-unit-icons-theme.

Testing instructions

1. Install the prerequisites and set up the comprehensive theme.
2. Add the following to lms/envs/private.py:

   from .common import XBLOCK_MIXINS
   OVERRIDE_GET_UNIT_ICON = 'custom_unit_icons.icons.get_icon'
   XBLOCK_MIXINS += ('custom_unit_icons.icons.IconOverrideMixin',)

3. Add the following to cms/envs/private.py:

   from .common import XBLOCK_MIXINS
   OVERRIDE_CREATE_XBLOCK_INFO = 'custom_unit_icons.icons.create_xblock_info'
   OVERRIDE_GET_UNIT_ICON = 'custom_unit_icons.icons.get_icon'
   XBLOCK_MIXINS += ('custom_unit_icons.icons.IconOverrideMixin',)

4. Restart LMS and Studio.
5. Go to the Course Outline page in Studio (sandbox link).
6. Click on the fa-eye icon next to one of the verticals and change the icon. Visit this page in LMS to see that the icon has been changed.

Deadline

It would be great if this could make it to some iteration of Lilac.

Reviewers

• @0x29a
• @bradenmacdonald / edX reviewer[s] TBD

Background

This is a follow-up to #21433. That PR initially:

1. Introduced a way to add custom editors via a theme. This was a big theming change, which included splitting a template monolith, to achieve pluggability). This has been removed from the scope of that PR. We have revisited the approach and found a simpler way to do this, which is a part of this PR.
2. Had an icon field added directly to the VerticalBlock class. We have changed the approach and decided to add it via a mixin. Unfortunately, this makes the fields write-only for Studio, because the custom field cannot be passed to the create_xblock_info function.

Settings

# Theme
EDXAPP_ENABLE_COMPREHENSIVE_THEMING: true
EDXAPP_COMPREHENSIVE_THEME_DIRS:
  - /edx/app/edxapp/themes
EDXAPP_DEFAULT_SITE_THEME: icons
edxapp_theme_name: "{{ EDXAPP_DEFAULT_SITE_THEME }}"
edxapp_theme_source_repo: https://github.com/open-craft/custom-unit-icons-theme.git

EDXAPP_EXTRA_REQUIREMENTS:
  - name: git+https://github.com/open-craft/custom-unit-icons.git@v0.4.0#egg=custom-unit-icons

EDXAPP_LMS_ENV_EXTRA:
  OVERRIDE_GET_UNIT_ICON: custom_unit_icons.icons.get_icon
  XBLOCK_EXTRA_MIXINS:
    - custom_unit_icons.icons.IconOverrideMixin

EDXAPP_CMS_ENV_EXTRA:
  OVERRIDE_CREATE_XBLOCK_INFO: custom_unit_icons.icons.create_xblock_info
  OVERRIDE_GET_UNIT_ICON: custom_unit_icons.icons.get_icon
  XBLOCK_EXTRA_MIXINS:
    - custom_unit_icons.icons.IconOverrideMixin

[openedx-webhooks]

Thanks for the pull request, @Agrendalath! I've created OSPR-5764 to keep track of it in JIRA, where we prioritize reviews. Please note that it may take us up to several weeks or months to complete a review and merge your PR.

Feel free to add as much of the following information to the ticket as you can:

• supporting documentation
• Open edX discussion forum threads
• timeline information ("this must be merged by XX date", and why that is)
• partner information ("this is a course on edx.org")
• any other information that can help Product understand the context for the PR

All technical communication about the code itself will be done via the GitHub pull request interface. As a reminder, our process documentation is here.

Please let us know once your PR is ready for our review and all tests are green.

[natabene]

@Agrendalath Thank you for your contribution. Please let me know once it is ready for our review.

[0x29a]

👍

• I checked that sandbox deployed using commit from this PR, has theme and custom editor installed, and tested that icon can be changed from studio.
• I read through the code.

[Agrendalath]

@natabene, this is ready for your review.

[bradenmacdonald]

@natabene Can I review this?

@Agrendalath The PR is relatively simple, but I find the PR description here a bit complex. Could you perhaps include an example screenshot of the "custom editors" that this allows, and explain why someone might want a "custom editor" ? The "Background" part can be removed or moved to the end.

[natabene]

@Agrendalath @bradenmacdonald Thank you both. I would prefer for someone from TNL to also have a look.

[arch-bom-gocd-alerts]

📣 💥 Heads-up: You must either rebase onto master or merge master into your branch to avoid breaking the build.

We recently removed diff-quality and introduced lint-amnesty. This means that the automated quality check that has run on your branch doesn't work the same way it will on master. If you have introduced any quality failures, they might pass on the PR but then break the build on master.

This branch has been detected to not have commit 2e33565 as an ancestor. Here's how to see for yourself:

git merge-base --is-ancestor 2e335653 agrendalath/bb-4060-allow_adding_custom_editors_to_studio && echo "You're all set" || echo "Please rebase onto master or merge master to your branch"

If you have any questions, please reach out to the Architecture team (either #edx-shared-architecture on Open edX Slack or #architecture on edX internal).

[Agrendalath]

@natabene, are there any updates on this?
cc: @bradenmacdonald

[natabene]

@Agrendalath No, no updates.

[pomegranited]

Hi @natabene , have TNL had a chance to look at this OSPR? CC @Agrendalath @bradenmacdonald

[natabene]

I am afraid not.

[marcotuts]

Can someone help me understand the implications of this in terms of what studio would now support with this change?

The ability to add actions to the elements o the course outline powered exclusively by theme level resources?

Are there any specific examples of when this would be valuable to use? The modal example seems to be for an icon switcher at the unit level?

[Agrendalath]

@marcotuts,

Can someone help me understand the implications of this in terms of what studio would now support with this change?
The ability to add actions to the elements o the course outline powered exclusively by theme level resources?

We have three changes here:

1. Extracting CourseOutlineView to a variable. This is a trivial change, which greatly increases the extendability of the Course Outline page in the Studio with comprehensive themes. Themes can add/modify functionalities on this page. New functionalities can be powered only with the theme, but we can also use plugins for more advanced customizations (I've included an example at the end of my comment).
2. Exporting a function for creating new editor modals. This is related to code reusability. If a theme adds a custom editor (using the way introduced in the previous point), it basically needs to copy all of this code. This change simply exposes SettingsXBlockModal, so that other JS files (e.g. the ones from the theme) can reuse it.
3. Adding a pluggable override for Studio's XBlock fields. This is a one-liner extension point that adds more flexibility to what is being passed to the Studio. It is already possible to add extra fields to all XBlocks through XBLOCK_EXTRA_MIXINS. At the moment these fields can only be read through the LMS, though. The Studio has write-only access. This change allows passing these custom fields to the Studio so that the custom themes can read them.

Are there any specific examples of when this would be valuable to use? The modal example seems to be for an icon switcher at the unit level?

Yes, that's correct. We're using these extension points and a simple plugin to add unit-level icon editors with a theme.
To sum up, this gives more power to the comprehensive themes for Studio by allowing them to:

• Override the Course Outline page.
• Reuse the existing code to create section/subsection/unit editors.
• Read additional XBlock fields.

[ormsbee]

I had not been following the @pluggable_override inclusion. That's a super-powerful and mildly terrifying extension mechanism. Does it have an ADR by any chance? I'm not looking to re-open the discussion on it or anything, but I would like to understand what kinds of best practices have been established around it as context for this review.

[Agrendalath]

@ormsbee, unfortunately, we don't have an ADR for them. For now, we have added them to the platform's extension points as a "Trial" plugin type. In openedx/edx-django-utils#64, we were discussing a proper way of documenting them but concluded that we can decide about their final form once we start using them for more scenarios and change their status to "Adopted".
We have started by using them for overriding the algorithm that determines XBlock's icon (#21433), which is a small functionality, so having more use cases is going to give us a better idea of how we want to use them. Since then, we have also added one override to customize the certificate view (#21147).

[ormsbee]

jenkins run django-3.2/python

[ormsbee]

jenkins run all

[ormsbee]

Can you try rebasing please?

[Agrendalath]

@ormsbee, the tests are currently failing on the master branch. I'll rebase this again once it's resolved.

[edx-status-bot]

Your PR has finished running tests. There were no failures.

[Agrendalath]

@ormsbee, the tests are green now.

[openedx-webhooks]

@Agrendalath 🎉 Your pull request was merged! Please take a moment to answer a two question survey so we can improve your experience in the future.

[edx-pipeline-bot]

EdX Release Notice: This PR has been deployed to the staging environment in preparation for a release to production.

[edx-pipeline-bot]

EdX Release Notice: This PR has been deployed to the production environment.
