About

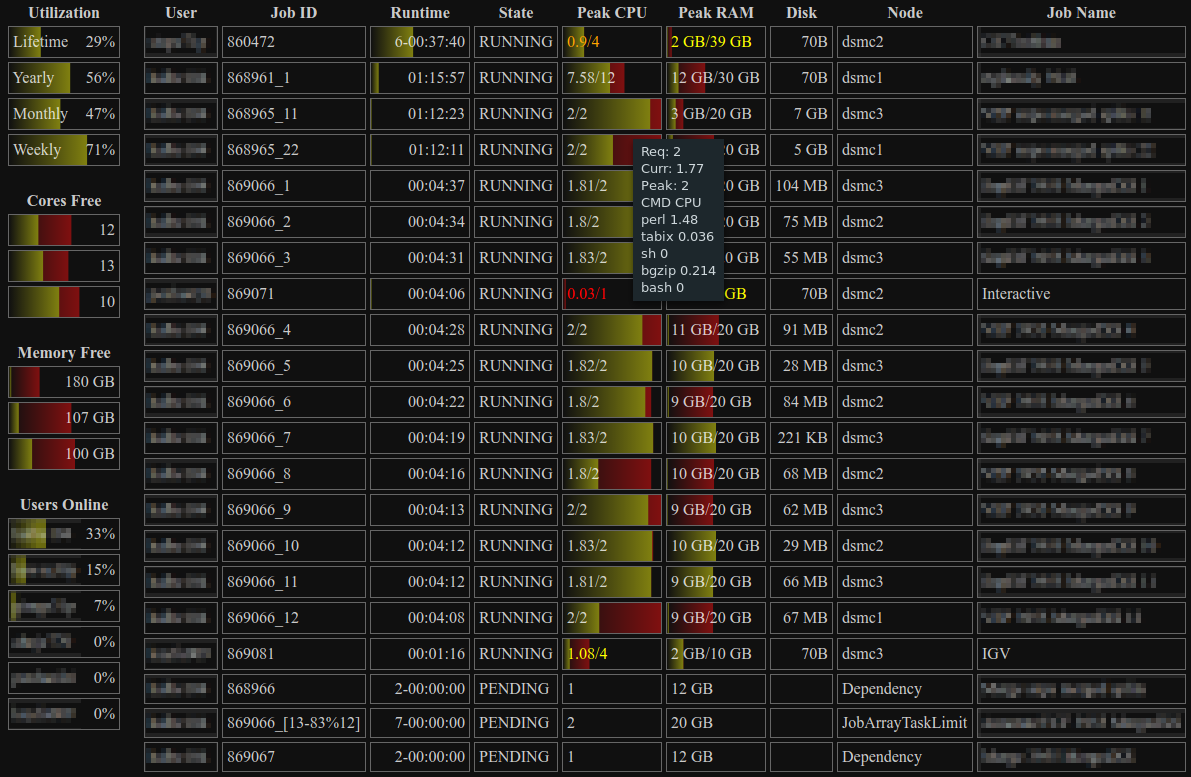

• Simple website to monitor small SLURM cluster.
• Contains head node and work node scripts that query slurm and the system to obtain usage statistics.
• bin/slurm_task_tracker.py runs on each working node. Collects locally running jobids and system ps output. Outputs to /dev/shm/slurm_task_trackes_$(hostname -s).txt containing "raw JobID,username,account,job array id,elapsed seconds,time limit seconds,partition,cores allocated,ram allocated in bytes,hostname,jobname,current pcpu,peak pcpu,current rss in bytes,peak rss in bytes,resource tree of children pid,pcpu,cmd,ram".
• bin/slurm_pending_tasks.py runs on head node. Collects list of PENDING jobs. Stores in /dev/shm/slurm_pending_tasks.txt containing "raw JobID,username,account,job array id,elapsed seconds,time limit seconds,partition,cores allocated,ram allocated in bytes,hostname,jobname" only.
• bin/slurm_cluster_stats.py collects sinfo and sreport data for cluster-wide state. Stores in /dev/shm/slurm_cluster_stats.txt containing core-years data, node list, per-user usage stats.
• bin/slurm_report_usage_from.sh runs 'sreport -nP cluster AccountUtilizationByUser' from a set date and returns overall usage.
• bin/slurm_report_usagepercent_from.sh runs ''

Requirements

• SLURM 17.2+ (squeue, sinfo, sreport)
• Python 2.7.13+ (os, datetime)

Optional

• Sufficent access to query $TMPDIR and $SCRATCH_DIR directory sizes.

Changelog

2020-06-17

Fixed

• reading empty lines from historical data track

2019-02-27

Added

• CPU OverCommit handling.
• Rolling history code -- Not displayed yet
• Process usage error handling.

Fixed

• Process usage error

Removed

• Condensed process names
• Memory-Over kill email.

Changed

• System username is now User's Firstname, First letter of last name.
• User usage now broken into CPU years, weeks, days, housr, minutes.
• All users displayed. Online are marked.
• Current percentage now partially transparrent to visualize over-usage.

2018-12-10

Changed

• Minor Formatting

Removed

• SHM_DIR, TMP_DIR as separate disk usage areas. They are now the same.

Fixed

• Commas Separated values need to remove commas from data

2018-10-15

Fixed

• Shared memory usage adds to memory usage.

Added

• 1:10 chance to cancels any job that exceeds memory allocation.
• Email alert when job terminates due to exceeding memory allocation.

2018-10-10

Added

• Query $SHM_DIR, $TMP_DIR and $SCRATCH_DIR disk space reporting.
• Display column for Disk usage. Doesn't include non-slurm areas.

2018-10-08

Changed

• LDAP resolve error halting updates with alert to printing error log.

Removed

• numfmt requirement.

Added

• Error logging
• Comments, glorious comments.

2018-10-05

Added

• Settings and config files.

Removed

• System call for hostname

2018-10-03

Added

• Readme
• CPU time in seconds to per-user listing.
• Parent-Child process map & return without additional system call.

Removed

• $SHM_DIR query from slurm_task_tracker.py as slurm doesn't care yet. CGROUPS required?
• pstree shell command requirement.

Changed

• Moved common functions to separate file.

Fixed

• CSS div alignment issues.

Todo

• Combine slurm_report_usage_from and slurm_report_usagepercent_from into single sreport call.
• Adaptable Layout for larger clusters, multiple QoS and multiple clusters.
• Mobile friendly layout.
