intergen

Interactive 3D shape generation tool built with Rust and Bevy.

Runtime tuning lives in config.toml at the repository root.

Documentation

• DATA_MODEL.md: scene/config/preset data model, including shared vs per-shape parameters

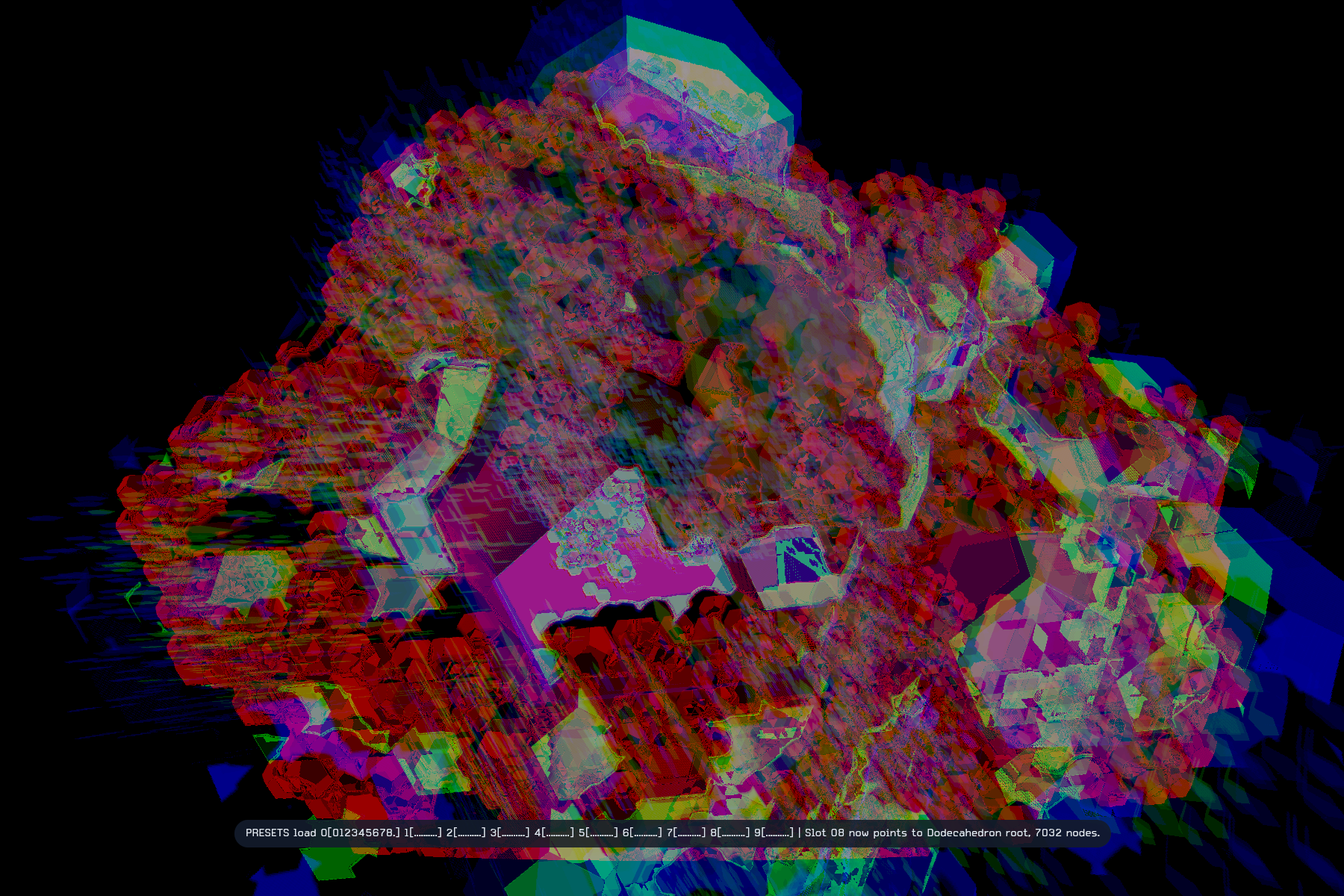

Gallery

The current prototype focuses on a fast local development loop and a usable vertical slice:

• inertial camera rotation on all 3 axes with preserved angular momentum
• keyboard zoom
• recursive shape spawning from parent vertices, edges, or faces
• selectable child shape type
• adjustable child scale ratio
• two-step in-app help overlay with text controls plus a hoverable neutral-mode keyboard map
• pinned F2 control pages for shader FX toggles/LFOs and scene, stage, and material runtime parameters, including group selection, scrolling lists, and direct numeric entry
• F5 recent-changes page for monitoring interactive parameter edits, camera momentum controls, and preset loads without treating LFO modulation as a change
• built-in screenshot capture for manual and scripted verification
• scene preset save/load/free workflow with 100 slots and collision resolution
• Blender .blend export with compositor reconstruction and embedded effect/LFO metadata
• containment rejection so obviously hidden fully-inside spawns are skipped
• camera-output shader stack with hard-wrap wavefolder, lens distortion, gaussian blur, bloom, and edge detection

Requirements

• Windows
• Rust stable MSVC toolchain
• Visual Studio 2022 Build Tools with the C++ workload
• Blender 5.x in PATH if you want .blend export (optional for normal app use)

Font

UI text prefers Carbon Plus if you place a licensed font file in assets/fonts/.

Supported filenames:

• assets/fonts/carbonplus-regular-bl.otf
• assets/fonts/CarbonPlus-Regular.ttf
• assets/fonts/CarbonPlus-Regular.otf
• assets/fonts/Carbon Plus Regular.ttf
• assets/fonts/Carbon Plus Regular.otf
• assets/fonts/CarbonPlus.ttf
• assets/fonts/Carbon Plus.ttf
• assets/fonts/carbonplus-bold-bl.otf
• assets/fonts/carbonplus-light-bl.otf

If you override ui.font_candidates in config.toml, the built-in Carbon Plus filenames above are still appended as fallback candidates. If none of those files are present, the app falls back to Bevy's default font.

Configuration

The app loads config.toml from the repository root on startup.

Current configuration sections:

• window: title, resolution, and present mode
• rendering: clear color, ambient light, and optional stage floor/backdrop surfaces
• camera: initial orbit, motion tuning, and angular-momentum preservation
• generation: root shape, default child shape, default spawn placement mode, scale limits, twist defaults and bounds, spawn cadence, single-spawn source repeat defaults, and spawn heuristics
• lighting: directional, point, and optional accent light colors, positions, and intensities
• effects: camera-output shader effects
• materials: color progression, legacy or scene-wide procedural material families, PBR tuning, and live opacity defaults
• capture: screenshot output directory and default capture delay
• ui: font candidates plus overlay sizing and colors

If config.toml is missing, the app falls back to the same built-in defaults.

Live twist controls use these generation settings:

• twist_per_vertex_radians: startup default for the child twist angle
• twist_adjust_step: per-keypress twist change
• twist_hold_delay_secs: how long to hold before twist repeat starts
• twist_repeat_interval_secs: time between repeated twist updates while held
• min_twist_per_vertex_radians / max_twist_per_vertex_radians: live clamp range, with 0.0 as the minimum allowed floor

Live child-offset controls use these generation settings:

• default_vertex_offset_ratio: startup default for the center offset from the selected parent attachment point, measured in child-radius units
• vertex_offset_adjust_step: per-keypress offset change
• vertex_offset_hold_delay_secs: how long to hold before offset repeat starts
• vertex_offset_repeat_interval_secs: time between repeated offset updates while held
• min_vertex_offset_ratio / max_vertex_offset_ratio: live clamp range, with 0.0 as the minimum allowed floor

Live child position-offset controls use these generation settings:

• default_child_position_offset: startup default for the copied child-local [x, y, z] offset, clamped component-wise to [-1.0, 1.0]
• child_position_offset_adjust_step: effect-tuner adjustment step for the copied child-local position offset components

Live spawn-exclusion controls use these generation settings:

• default_vertex_spawn_exclusion_probability: startup default for the chance that a given attachment in the current spawn mode is skipped during spawning
• vertex_spawn_exclusion_adjust_step: per-keypress probability change
• vertex_spawn_exclusion_hold_delay_secs: how long to hold before repeat starts
• vertex_spawn_exclusion_repeat_interval_secs: time between repeated probability updates while held
• min_vertex_spawn_exclusion_probability / max_vertex_spawn_exclusion_probability: live clamp range, limited internally to [0.0, 1.0]

Single-spawn attachment reuse uses this generation setting:

• default_single_attachment_repeat_count: startup default for how many successful single-mode spawns stay on the current source attachment before advancing. 0 means stay on the current source attachment indefinitely, 1 preserves the old one-spawn-per-source behavior, and values above 1 stay that many successful spawns before advancing.

Camera-output effects run in this order:

• effects.lens_distortion: warp the camera image with radial, tangential, and chromatic lens terms
• effects.color_wavefolder: hard-wrap the distorted camera color by amplification plus remainder
• effects.gaussian_blur: blur the distorted and wavefolded image
• effects.bloom: add a bright-pass glow over the processed image
• effects.edge_detection: detect edges from the distorted and wavefolded image and mix a configurable edge color over it

Camera-output color wavefolder uses these effects.color_wavefolder settings:

• enabled: turns the hard-wrap post-process on or off
• gain: amplifies the color before wrapping
• modulus: the divisor whose remainder is kept after amplification

Camera-output lens distortion uses these effects.lens_distortion settings:

• enabled: turns lens warping on or off
• strength: primary radial barrel/pincushion term (k1)
• radial_k2 / radial_k3: higher-order radial shaping terms for the shoulder of the warp
• center: distortion center in normalized screen coordinates
• scale: per-axis distortion scale for anamorphic or elliptical warping
• tangential: tangential skew terms that decenter the lens model
• zoom: scales the distorted image to keep more or less of the warped frame in view
• chromatic_aberration: shifts color channels apart along the distortion field

Camera-output gaussian blur uses these effects.gaussian_blur settings:

• enabled: turns blur on or off
• sigma: controls the gaussian falloff
• radius_pixels: blur radius in pixels, clamped to 16 in the current single-pass shader

Camera-output bloom uses these effects.bloom settings:

• enabled: turns bright-pass bloom on or off
• threshold: minimum brightness that contributes to the glow
• intensity: bloom contribution added back onto the processed image
• radius_pixels: bloom blur radius in pixels, clamped to 16 in the current single-pass shader

Camera-output edge detection uses these effects.edge_detection settings:

• enabled: turns the edge pass on or off
• strength: scales edge magnitude before thresholding
• threshold: subtracts a floor from the detected edge magnitude
• mix: blends the edge color over the processed image
• color: RGB edge overlay color

The in-app F2 control page starts from the values loaded from config.toml at launch.

• Live edits affect the running app only.
• The F2 control list covers shader effects plus scene, stage, and material runtime controls, including enum-like fields such as child shape, spawn placement mode, add mode, stage toggles, and procedural surface families.
• The first F2 press opens a parameter-group page, the second F2 press opens the compact strip, the third F2 press opens the full scrolling parameter list with an LFO detail panel beside the selected row, and the fourth F2 press closes the page.
• On the first F2 page, Up / Down choose a parameter group and Enter or Space opens that group's parameter list.
• Up / Down select the active F2 control in the compact page, the full list page, or a group-specific parameter list, with hold-to-repeat.
• Left / Right or Tab / Shift + Tab switch the active F2 field between value, LFO amplitude, LFO frequency, and LFO shape when the selected parameter supports LFOs.
• Ctrl + Up / Ctrl + Down adjust the active F2 field in the compact or parameter-list pages. Shift makes the step coarser and Alt makes it finer.
• Space toggles the selected shader effect on or off in the compact or parameter-list pages.
• L toggles the selected parameter LFO on or off when the selected parameter supports LFOs.
• Type digits, ., ,, -, or + to set the active numeric field directly. Backspace erases the typed numeric input in the compact or parameter-list pages.
• LFO shapes currently available are sine, triangle, saw, square, stepped random, and brownian motion.
• Enter confirms typed numeric F2 input, or resets the selected F2 field when no numeric input is active.
• Shift + Enter resets all F2 controls to their startup defaults.
• Shader-effect parameters expose LFO fields, and so do the supported numeric scene/runtime parameters, including live scene updates and generation values that only take effect during future spawning. Other scene, stage, and material controls remain value-only.
• In fill-current-level spawn mode, each successfully spawned child advances a virtual LFO sample time by generation.fill_mode_lfo_virtual_time_step_secs, so spawn-time generation LFOs can vary across one batch without waiting for real time to pass.
• F5 toggles a recent interactive changes page. It keeps the last changed parameter visible and also lists any other parameters changed in the last few seconds.
• The F5 page renders visible changes alphabetically near the bottom of the screen, growing upward as more changed parameters are shown.
• Continuous manual controls such as held camera or tuner keys are coalesced so the page updates without flooding its history.
• LFO modulation updates are not counted as F5 changes; only explicit interactive edits are recorded.
• Esc closes the current F-page, including help, F2, F3, or F5.
• The tuner does not write changes back to config.toml automatically.

Live opacity controls use these materials settings:

• default_opacity: startup default for all object materials
• opacity_adjust_step: per-keypress opacity change
• min_opacity / max_opacity: live clamp range

Scene Presets

Press F3 to toggle scene preset mode. The bottom preset strip shows the 10 banks (0-9), each with 10 slots.

Preset behavior:

• two digits (00 to 99) load the assigned scene preset for that bank and slot
• S arms saving, then the next two digits choose the bank and slot assignment
• Delete arms freeing, then the next two digits clear that slot assignment from any matching preset files
• Esc closes the preset page
• if multiple preset files claim the same slot, a chooser appears; Up / Down selects which file keeps the slot and Enter confirms it

Preset files are stored as TOML under scene-presets/. Filenames are unique and are not based on the bank and slot, so saving a new preset never overwrites an older file by name. The bank and slot assignment lives inside the preset file metadata.

Current scene preset contents:

• render clear color and ambient light
• directional and point light settings
• stage visibility plus floor/backdrop toggles
• material palette/PBR settings, procedural surface-family settings, and the saved base global opacity
• camera position, distance, and momentum
• selected child shape, spawn placement mode, spawn add mode, single-spawn source repeat count, scale ratio, base twist/outward-offset values, and global spawn-exclusion probability
• the shape tree rebuilt from those saved base values, including each node's scalar and per-axis scale
• effect-tuner values plus all per-parameter LFO settings

When scene or material LFOs are active, preset files preserve the underlying base values and the LFO setup separately instead of freezing a single sampled frame.

Blender Export

Press F4 during a normal interactive run to write a timestamped Blender scene under blend-exports/.

What the .blend currently includes:

• the full shape scene as real Blender mesh objects
• the current camera, directional light, point light, and world background
• per-object materials with transparency, metallic, roughness, and reflectance-derived specular
• compositor recreation for lens distortion, hard-wrap wavefolder, gaussian blur, bloom, and edge detection
• embedded Text datablocks with the full Intergen export snapshot, evaluated camera-output effect values, and all effect-tuner/LFO runtime settings

Current limitation:

• LFOs are preserved inside the .blend as metadata, but they are not yet converted into native Blender animation drivers or node animation
• Blender's built-in compositor does not expose every Intergen lens-distortion term directly, so the exported compositor is a best-effort approximation while the full original parameters remain in the embedded metadata

For automated export-and-exit from the command line:

cargo run -- --export-blend blend-exports\check.blend --export-blend-delay-frames 120

Run

cargo run

The default development build enables Bevy dynamic linking for faster rebuilds.

If you want to run without that mode:

cargo run-plain

To save a verification screenshot and exit automatically:

cargo run -- --capture screenshots\check.png --capture-delay-frames 120

To load a scene preset on startup:

cargo run -- --load-scene-preset scene-presets\example.toml

During a normal interactive run, press F12 to save a screenshot under screenshots/.

Test

cargo test

Without dynamic linking:

cargo test-plain

Controls

• Arrow Up / Arrow Down: pitch camera
• Arrow Left / Arrow Right: yaw camera
• Q / E: roll camera
• W / S: zoom in / out
• Backspace: stop camera rotation momentum, or erase typed numeric F2 input while the F2 page is focused
• F1: cycle help views between hidden, text, and keyboard-map overlays
• F2: open the parameter-group F2 page, second press opens the compact page, third press opens the full list page, fourth press closes it
• F3: open or close the scene preset page
• F4: export the current scene to blend-exports/ as a Blender .blend
• F5: open or close the recent interactive changes page
• Esc: close the current F-page, including help, F2, F3, or F5
• Up / Down in the first F2 page: select the active parameter group
• Enter / Space in the first F2 page: open the selected group's parameter list
• Up / Down in F2 compact or parameter-list pages: select the active F2 control, with hold-to-repeat
• Left / Right or Tab / Shift + Tab in F2: switch the active F2 field
• Ctrl + Up / Ctrl + Down in F2 compact or parameter-list pages: adjust the active F2 field
• Space in F2 compact or parameter-list pages: toggle the selected shader effect on or off
• L in F2: toggle the selected parameter LFO on or off when supported
• Shift in F2: coarse adjustment modifier
• Alt in F2: fine adjustment modifier
• Enter in F2 compact or parameter-list pages: confirm typed numeric input
• Shift + Enter in F2: reset all F2 controls to their startup defaults
• F12: save a screenshot to screenshots/
• R: reset the scene with the currently selected shape as the new root
• Space: spawn child shapes with the current placement mode, or hold to keep spawning
• Ctrl + Space: cycle the add mode between single spawn and fill-current-level spawning
• ,: decrease the single-spawn source repeat count
• .: increase the single-spawn source repeat count
• Fill-current-level spawning advances spawn-time generation LFO sampling by generation.fill_mode_lfo_virtual_time_step_secs per successful child
• G: cycle the spawn placement mode between vertices, edges, and faces
• 1: select cube
• 2: select tetrahedron
• 3: select octahedron
• 4: select dodecahedron
• -: decrease child scale ratio
• +: increase child scale ratio
• [: decrease child twist angle, or hold to keep decreasing
• ]: increase child twist angle, or hold to keep increasing
• Z: decrease the child outward offset, or hold to keep decreasing
• X: increase the child outward offset, or hold to keep increasing
• C: reset the child outward offset to the configured default
• V: decrease the global spawn-exclusion probability, or hold to keep decreasing
• B: increase the global spawn-exclusion probability, or hold to keep increasing
• N: reset the global spawn-exclusion probability to the configured default
• In single-spawn mode, generation.default_single_attachment_repeat_count = 0 keeps reusing the current source attachment, 1 preserves the original one-spawn-per-source behavior, and larger values stay on one source attachment for that many successful spawns before advancing
• O: decrease global object opacity
• P: increase global object opacity
• I: reset global object opacity to the configured default
• T: reset the child twist angle to the configured default

Build Notes

• cargo run does not always recompile. If nothing relevant changed, Cargo reuses the existing build output.
• Editing Rust source files should usually rebuild only intergen.
• Changing Cargo.toml, enabled features, toolchain, or profile settings can trigger a larger one-time rebuild.
• cargo check is the fastest command for type-checking without launching the app.

Current Scope

Implemented now:

• custom meshes for cube, tetrahedron, octahedron, and dodecahedron
• recursive level-by-level spawning
• metallic lit PBR scene
• optional stage floor/backdrop plus procedural material surface families
• F2 control page for shader effects, scene parameters, stage toggles, and material tuning
• scene preset save/load/free support with slot-collision resolution
• camera-output hard-wrap wavefolder, lens distortion, gaussian blur, bloom, and edge-detection post process
• Blender export with embedded snapshot, evaluated effect values, and effect-tuner/LFO metadata
• unit tests for geometry counts and spawn ordering

Not implemented yet:

• mouse controls
• hardware ray tracing
• more advanced visibility heuristics than simple containment rejection
• automatic conversion of runtime LFOs into native Blender animation/drivers

License

intergen is licensed under GPL-3.0-or-later.

Copyright (C) 2026 Francesco Stablum.

See LICENSE for the project notice and COPYING for the full GNU General Public License text.
