Use a simpler :prefix-name: syntax for icon fonts

[Xenonym]

What is the purpose of this pull request? (put "X" next to an item, remove the rest)

• [X] Enhancement to an existing feature

Resolves #612.

What is the rationale for this request?
Currently, we use the {{ prefix_name }} syntax for inserting icon fonts from Font Awesome and Glyphicons. It would be ideal to support a simpler :prefix-name: syntax, similar to how we support :emoji:.

What changes did you make? (Give an overview)

• I added markdown-it-regexp to match :prefix-name: and replace them with the appropriate icon font HTML.
• I added aria-hidden="true" to the FA icons to be consistent with Glyphicons and for accessibility.
  (FA's accessibility documentation, Bulletproof Accessible Icon Fonts)
• I updated the default site-nav.md, the test_site's site-nav.md, and the user guide to use the new :prefix-name: syntax.
• I removed the use of icon font variables from the default site, unit tests and test_site.
• I created a corresponding PR Use a simpler :prefix-name: syntax for icon fonts in <panel> headings vue-strap#97 in the vue-strap repo to parse :prefix-name: in <panel> headers.

Provide some example code that this change will affect:

- FA university icon: :fas-university:
- Glyphicon icon: :glyphicon-home:

Testing instructions:

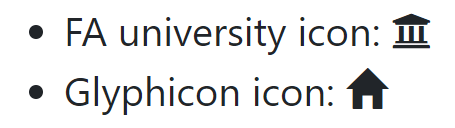

1. Add the above sample code to a MarkBind page and markbind serve. The icons should render:

[acjh]

Let's officially deprecate the variables syntax for icons.

[yamgent]

A search for {{glyphicon still returns files that are using the old syntax.

[Chng-Zhi-Xuan]

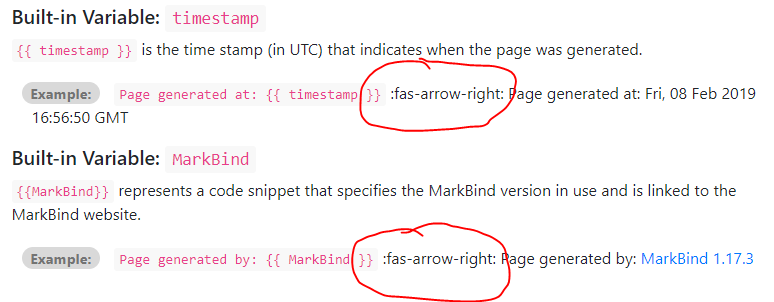

Seems like there are some icons that are not rendered.

In reusingcontents.md

[Xenonym]

Seems like there are some icons that are not rendered.

@Chng-Zhi-Xuan good catch! Turns out a preceding line break from the last <div> tag is needed, since we need to interpret the text as Markdown for markdown-it to parse the icon fonts.

[Xenonym]

A search for {{glyphicon still returns files that are using the old syntax.

@yamgent Yes, since these are still used to test variables. Since we are only deprecating the syntax for the next release, I think we still have to keep them to ensure that existing uses don't break until when we remove the syntax altogether. Also, there are some issues related to testing since we will not have static built-in variables after we remove the {{ prefix_name }} syntax. From the PR:

Some {{ prefix_name }} usages that were not changed because they are implicitly used to test variables:

• In Site.js#FOOTER_DEFAULT:
  'This is a dynamic height footer that supports variables {{glyphicon_tags}}'
• In Site.test.js#test('Site resolves variables referencing other variables'):
  '<span id="level3">{{glyphicon_plus}}</span>'

When we remove icon font variables, the only remaining built-in variable with HTML will be {{ MarkBind }}. Since {{ MarkBind }} changes with every new version, I am unsure if it is a good candidate for automated testing.

[Chng-Zhi-Xuan]

When we remove icon font variables, the only remaining built-in variable with HTML will be {{ MarkBind }}. Since {{ MarkBind }} changes with every new version, I am unsure if it is a good candidate for automated testing.

I think it is fine to swap over to the new syntax completely, We can just add unit tests in test_site to test any old syntax required.

[acjh]

@Chng-Zhi-Xuan By completely, do you mean including {{ MarkBind }}?

Note that this PR does not (should not) introduce a new syntax for variables, just "constant" icons.

[Chng-Zhi-Xuan]

@acjh I am referring to the Glyphicons using the old syntax. Since this PR is meant to improve icon syntax only.

[Chng-Zhi-Xuan]

@Xenonym, I looked through again and seems ok.

However, we should change our documentation and tests to follow the new icon syntax in this PR. "Implicit testing" of old syntax by intentionally leaving some icons with old syntax in templates or tests is not clean.

Please do change the FOOTER_DEFAULT template in Site.js which uses icons, to the new syntax. I found other instances in Site.test.js and test_site using the old icon syntax as well.

Once you're done, I can give the green light 👍

[Xenonym]

Please do change the FOOTER_DEFAULT template in Site.js which uses icons, to the new syntax. I found other instances in Site.test.js and test_site using the old icon syntax as well.

@Chng-Zhi-Xuan made the necessary changes! Here's a summary:

• Removed {{glyphicons_tag}} from FOOTER_DEFAULT. The use of {{MarkBind}} and {{timestamp}} already serve as a means to demonstrate variables.
• Removed {{education_icon}} from test_site.
• Modified test('Site resolves variables referencing other variables') to use a custom variable instead.
• Used a <span> instead of <font> tag for the code example in reusingContents.md since the <font> tag is deprecated.

[Chng-Zhi-Xuan]

Thanks for the changes, looks good 👍

Good point on the <font> element being obsolete. Although I still find numerous instances of using it within our documentation / code base.

@Xenonym Do open up an issue to refactor <font> elements in a separate PR.

[damithc]

Gave it a try. Works as intended. Nice work @Xenonym and reviewers.

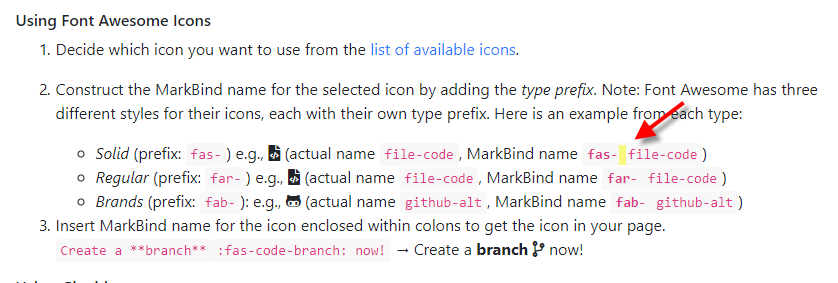

One small nit. This extra space can be misleading (not sure if it was introduced in this PR or not).

[Chng-Zhi-Xuan]

That extra space was already present before the icon syntax change PR. The blank space is caused by the <code> tag having padding on the left and right side. There are 2 inline code blocks (fab- and file-code etc) so the result looks like an additional space in-between.

Snippet from icons.mbdf

   * _Solid_ (prefix: `fas-`) e.g., :fas-file-code: (actual name `file-code`, MarkBind name **`fas-`**`file-code`)
   * _Regular_ (prefix: `far-`) e.g., :fas-file-code: (actual name `file-code`, MarkBind name **`far-`**`file-code`)
   * _Brands_ (prefix: `fab-`): e.g., :fab-github-alt: (actual name `github-alt`, MarkBind name **`fab-`**`github-alt`)

[damithc]

That extra space was already present before the icon syntax change PR. The blank space is caused by the <code> tag having padding on the left and right side. There are 2 inline code blocks (fab- and file-code etc) so the result looks like an additional space in-between.

I guess it is a legacy problem. It's better to fix it though. We can sacrifice the bolding. On a related note, I hope we can add a proper way to highlight/bold parts of code some day.
