[WIP] installer: Update InnoSetup from 5.6.1 to 6.1.2

[dennisameling]

#326 installs Git for Windows in the 32-bit Program Files folder (C:\Program Files (x86)), but InnoSetup 6 added support for installing in the 64-bit folder for Windows on ARM:

6.0: Support for 64-bit mode on Windows 10 on ARM.

While not a hard requirement, it would be nice to have future versions of Git for Windows on ARM64 install in the 64-bit app directory by default.

They also bumped the minimal Windows version to Vista, but that should be fine given the fact that Git for Windows also requires Vista or later.

Most important changes are listed at https://jrsoftware.org/isdl.php#stable, and the full changelog is listed at https://jrsoftware.org/files/is6-whatsnew.htm

Testing on Windows on ARM

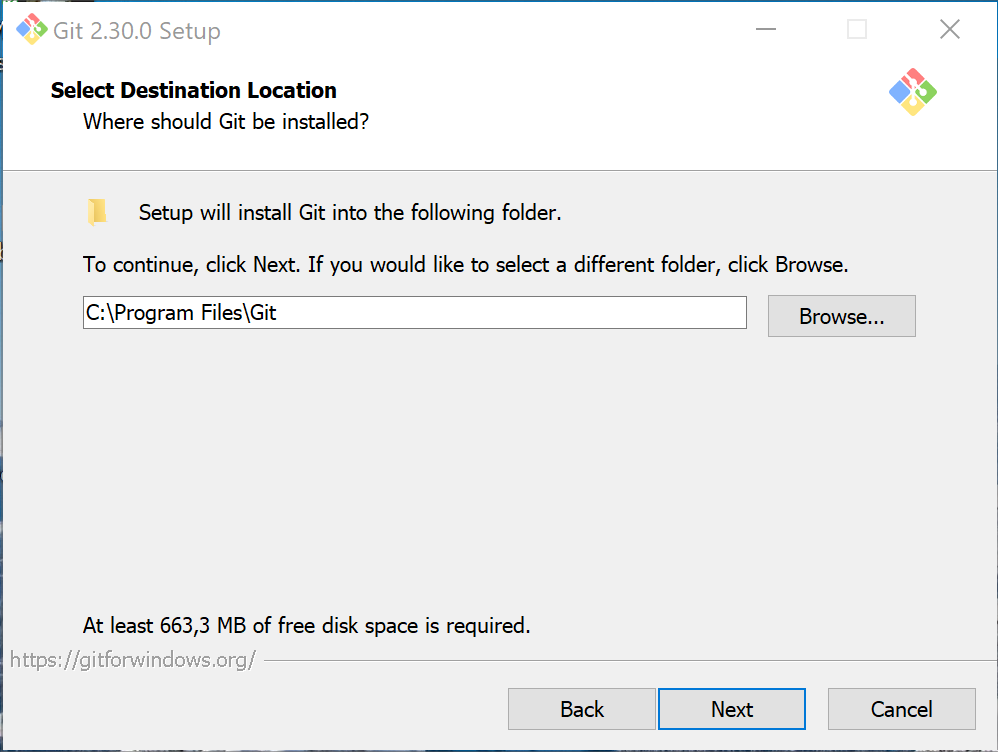

After applying this PR and building the installer, Git will be installed to C:\Program Files\Git instead of C:\Program Files (x86)\Git on Windows on ARM:

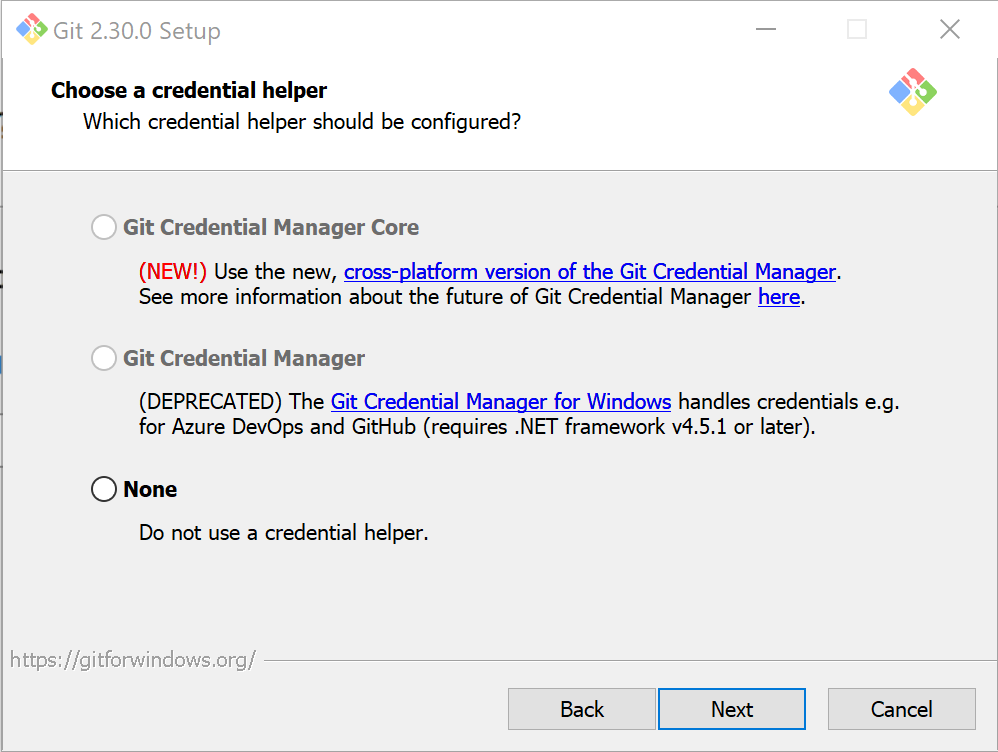

One thing I noticed is that on Windows on ARM, both Git Credential Manager options are greyed out:

[dennisameling]

Bumped the MinVersion to 6.0 (Vista)

[rimrul]

I guess that means we could drop our own check wether we're running on vista or later.

[dennisameling]

It needs to stay there, otherwise InnoSetup will default to 6.1sp1:

Change in default behavior: Starting with Inno Setup 6.1 the [Setup] section directive MinVersion defaults to 6.1sp1, so by default Setup will not run on Windows Vista or on versions of Windows 7 and Windows Server 2008 R2 which have not been updated. Setting MinVersion to 6.0 to allow Setup to run on Windows Vista is supported but not recommended: Windows Vista doesn't support some of Setup's security measures against potential DLL preloading attacks so these have to be removed by the compiler if MinVersion is below 6.1 making your installer less secure on all versions of Windows.

[rimrul]

No, i meant since InnoSetups requirement and this MinVersion=6.0 check are in place, we don't need this check anymore:

build-extra/installer/install.iss

Lines 1000 to 1006 in dbd9c2c

	GetWindowsVersionEx(Version);
	if (Version.Major<6) then begin
	if SuppressibleMsgBox('Git for Windows requires Windows Vista or later.'+#13+'Click "Yes" for more details.',mbError,MB_YESNO,IDNO)=IDYES then
	ShellExec('open','https://gitforwindows.org/requirements.html','','',SW_SHOW,ewNoWait,ErrorCode);
	Result:=False;
	Exit;
	end;

[dennisameling]

Had to remove this due to the following error:

Launching Inno Setup compiler ...
Error on line 3369 in C:\git-sdk-32\usr\src\build-extra\installer\install.iss: Column 14:
Unknown identifier 'CENTER'

[dscho]

Heh, I did the same in dscho/build-extra@674f320...

[dennisameling]

There's no longer an is-unicode.exe file. Details:

Change in default behavior: Starting with Inno Setup 6 there's only one version available: Unicode Inno Setup. Unicode Inno Setup has been available for 9 years but in case you have not yet updated to it: please see the Unicode Inno Setup topic in the help file for more information. Basically, unless you're using [Code] to make DLL calls with string parameters you shouldn't have to make any changes to your script.

[dscho]

I did the same in dscho/build-extra@commit 114305f, and I also added //CURRENTUSER, no idea why, I forgot the details (probably because it's been over a year that I dabbled with the InnoSetup upgrade).

[rimrul]

One thing I noticed is that on Windows on ARM, both Git Credential Manager options are greyed out:

Seems like we can't detect .NET Framework 4.5.1 or newer

build-extra/installer/install.iss

Lines 1083 to 1090 in dbd9c2c

	function DetectNetFxVersion:Cardinal;
	begin
	// We are only interested in version v4.5.1 or later, therefore it
	// is enough to only use the 4.5 method described in
	// https://msdn.microsoft.com/en-us/library/hh925568
	if not RegQueryDWordValue(HKEY_LOCAL_MACHINE,'SOFTWARE\Microsoft\NET Framework Setup\NDP\v4\Full','Release',Result) then
	Result:=0;
	end;

build-extra/installer/install.iss

Lines 2172 to 2179 in dbd9c2c

	// Restore the settings chosen during a previous install, if .NET 4.5.1
	// or later is available.
	if DetectNetFxVersion()<378675 then begin
	RdbGitCredentialManager[GCM_Classic].Checked:=False;
	RdbGitCredentialManager[GCM_Classic].Enabled:=False;
	RdbGitCredentialManager[GCM_Core].Checked:=False;
	RdbGitCredentialManager[GCM_Core].Enabled:=False;
	end else begin

[dennisameling]

@rimrul thanks for that info! I just checked and this is the reason it fails:

x64 machine
This machine has two registry keys, one for 32-bit and one for the 64-bit .NET framework:

32-bit: HKEY_LOCAL_MACHINE\SOFTWARE\WOW6432Node\Microsoft\NET Framework Setup\NDP\v4\Full
64-bit: HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\NET Framework Setup\NDP\v4\Full

ARM64 machine
This machine only has one registry key, because .NET Framework 4 isn't available natively for ARM64 (only .NET Core 5+ is) and 64-bit (x64) emulation is only available in prerelease versions of Windows 10:

32-bit: HKEY_LOCAL_MACHINE\SOFTWARE\WOW6432Node\Microsoft\NET Framework Setup\NDP\v4\Full
64-bit: MISSING

InnoSetup will attempt to access the 64-bit registry in 64-bit mode, so it makes sense that the value isn't found. .NET Framework is installed on ARM64 though, only the 32-bit version.

To keep things clean, it might be an option to separate this PR into two:

1. Update InnoSetup to 6.1.2, not changing any other functionality
2. Add 64-bit support for Windows ARM64

Otherwise it might become a bit challenging to review this PR. What do you think?

[dscho]

To keep things clean, it might be an option to separate this PR into two:

1. Update InnoSetup to 6.1.2, not changing any other functionality

2. Add 64-bit support for Windows ARM64

Otherwise it might become a bit challenging to review this PR.

I think that it's a fine plan to split this work up into two separate PRs.

[dennisameling]

Closing this PR as it's superseded by #327. Decided to just close this PR rather than force-push commits here, so that we'll keep the comment history here 👍🏼
