[FEATURE] Add KopEventManager to repair metadata consistency of cluster and consistency of consumer group status - #712

Merged
BewareMyPower merged 23 commits into
streamnative:masterfrom
wenbingshen:fix_describeGroup_timeOut
Sep 15, 2021
Merged

[FEATURE] Add KopEventManager to repair metadata consistency of cluster and consistency of consumer group status#712
BewareMyPower merged 23 commits into
streamnative:masterfrom
wenbingshen:fix_describeGroup_timeOut

Conversation

@wenbingshen

@wenbingshen wenbingshen commented Sep 6, 2021

Copy link
Copy Markdown
Contributor

Fixes #617

Motivation

When investigating #617, I found the root cause of TimeOut exception and incorrect consumer group status.

The first question is a new problem I found while investigating the cause
1. For example, when the cluster contains two kop nodes, broker1 is the owner broker of all topics in the current cluster, and broker2 is not the leader of any partition.

  • 1.1. When the client describesGroup, it needs to connect to the configured brokerList first.
  • 1.2. Suppose it connects to broker2 to obtain metadata. For the current server-side metadata processing logic, if the leader nodes of all partitions are not broker2, they are all broker1. Since metadata acquisition proceeds normally, the metadata returned by the brokers node only contains broker1.
  • 1.3. So next, the client will send FindCoordinatorRequest to broker1. Broker1 calculates based on the consumer group hash and finds that the coordinator is on broker2.
  • 1.4. Because the cluster attribute in the client metadata only has the broker1 node, the client can no longer send DescribeGroupRequest to the broker2, and keep sending the update metadata request to broker1 until it times out.

The second question is described in #617
2. The current GroupCoordinator will not remove the deleted partition from the GroupMetadata after the topic is deleted

Modifications

Add a single-threaded event processing queue on the kop server. It will obtain the current cluster node metadata once at startup and place it locally, and will also register to monitor the /loadbalance/broker subnode and /kop/delete_topics subnode, /loadbalance /broker is used to update the metadata of the kop node list, and /kop/delete_topics is used to update the GroupMetadata which had these deleted topics, and try to change the state of the consumer group.

@wenbingshen

wenbingshen commented Sep 6, 2021

Copy link
Copy Markdown
Contributor Author

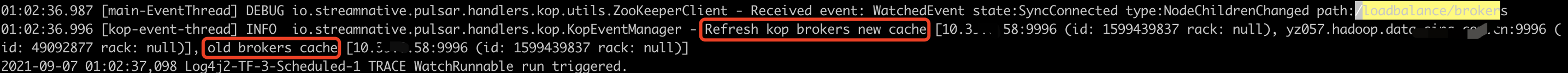

  1. When a new node started, the kop brokers node metadata update is triggered.

@wenbingshen wenbingshen changed the title Fix describe group time out [FEATURE] Add KopEventManager to repair metadata consistency of cluster and consistency of consumer group status Sep 6, 2021
@wenbingshen

Copy link
Copy Markdown
Contributor Author

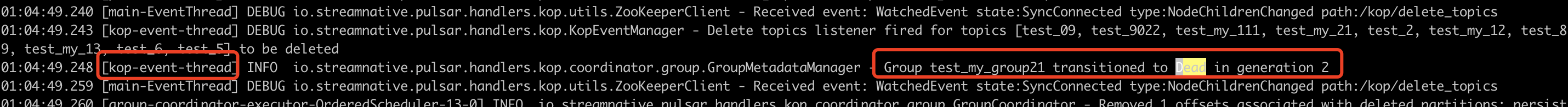

  1. Remove the deleted partition from the GroupMetadata and try to update the consumer group status.


@wenbingshen

Copy link
Copy Markdown
Contributor Author

@BewareMyPower There are still some bugs in the code that need to be fixed and related tests added. Before that, can you first take a look at the solution described by this pr? thanks.

@wenbingshen wenbingshen left a comment

Copy link
Copy Markdown
Contributor Author

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Processing cluster brokers metadata updates and processing deleted topics for consumer groups

@wenbingshen wenbingshen changed the title [FEATURE] Add KopEventManager to repair metadata consistency of cluster and consistency of consumer group status [WIP] Add KopEventManager to repair metadata consistency of cluster and consistency of consumer group status Sep 7, 2021
@wenbingshen wenbingshen changed the title [WIP] Add KopEventManager to repair metadata consistency of cluster and consistency of consumer group status [FEATURE] Add KopEventManager to repair metadata consistency of cluster and consistency of consumer group status Sep 7, 2021
@wenbingshen

Copy link
Copy Markdown
Contributor Author

@BewareMyPower My PR and I are ready. Zk client has been replaced with MetadataStore. PTAL :)

@BewareMyPower BewareMyPower added the type/feature Indicates new functionality label Sep 8, 2021
Comment thread kafka-impl/src/main/java/io/streamnative/pulsar/handlers/kop/KopEventManager.java Outdated
Comment thread kafka-impl/src/main/java/io/streamnative/pulsar/handlers/kop/KopEventManager.java Outdated
Comment thread tests/src/test/java/io/streamnative/pulsar/handlers/kop/KopEventManagerTest.java Outdated
Comment thread kafka-impl/src/main/java/io/streamnative/pulsar/handlers/kop/KopEventManager.java Outdated
@BewareMyPower

Copy link
Copy Markdown
Contributor

I've left some comments, PTAL. The main problem is that we should avoid waiting a future in any callback, which was very dangerous and hard to investigate the reason if deadlock happened. There was a similar problem before, see #556.

@wenbingshen

Copy link
Copy Markdown
Contributor Author

I've left some comments, PTAL. The main problem is that we should avoid waiting a future in any callback, which was very dangerous and hard to investigate the reason if deadlock happened. There was a similar problem before, see #556.

Thank you for your meaningful comments. Based on your comment, I fixed the relevant code, and for the test, I added timeout=6000 ms. In my local area, the actual test can be completed in just a few hundred milliseconds. It took 1 minute before because I got the judgment condition wrong. I mistakenly wrote describeGroup.get(groupId).state().name().equals("DEAD") as describeGroup.get(groupId).state( ).name().equals("Dead")). PTAL :)

@wenbingshen

Copy link
Copy Markdown
Contributor Author

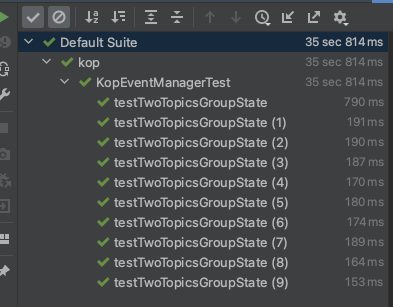

A single test only took around 190 milliseconds.


@wenbingshen

Copy link
Copy Markdown
Contributor Author

The failed test does not seem to be related to the PR.

Comment thread kafka-impl/src/main/java/io/streamnative/pulsar/handlers/kop/KopEventManager.java Outdated
Comment thread kafka-impl/src/main/java/io/streamnative/pulsar/handlers/kop/AdminManager.java Outdated
@BewareMyPower

Copy link
Copy Markdown
Contributor

Overall LGTM, just left a few comments, PTAL.

@wenbingshen

Copy link
Copy Markdown
Contributor Author

@BewareMyPower I have addressed your comments. PTAL.

@BewareMyPower
BewareMyPower merged commit 8673b8a into streamnative:master Sep 15, 2021
BewareMyPower pushed a commit that referenced this pull request Sep 30, 2021
…er and consistency of consumer group status (#712)

Fixes #617

### Motivation
When investigating #617, I found the root cause of TimeOut exception and incorrect consumer group status.

**The first question is a new problem I found while investigating the cause**
**1. For example, when the cluster contains two kop nodes, broker1 is the owner broker of all topics in the current cluster, and broker2 is not the leader of any partition.**

- 1.1. When the client describesGroup, it needs to connect to the configured brokerList first.
- 1.2. Suppose it connects to broker2 to obtain metadata. For the current server-side metadata processing logic, if the leader nodes of all partitions are not broker2, they are all broker1. Since metadata acquisition proceeds normally, the metadata returned by the brokers node only contains broker1.
- 1.3. So next, the client will send FindCoordinatorRequest to broker1. Broker1 calculates based on the consumer group hash and finds that the coordinator is on broker2.
- 1.4. Because the cluster attribute in the client metadata only has the broker1 node, the client can no longer send DescribeGroupRequest to the broker2, and keep sending the update metadata request to broker1 until it times out.

**The second question is described in #617**
**2. The current GroupCoordinator will not remove the deleted partition from the GroupMetadata after the topic is deleted**

### Modifications
Add a single-threaded event processing queue on the kop server. It will obtain the current cluster node metadata once at startup and place it locally, and will also register to monitor the `/loadbalance/broker` subnode and `/kop/delete_topics` subnode, `/loadbalance /broker` is used to update the metadata of the kop node list, and `/kop/delete_topics` is used to update the GroupMetadata which had these deleted topics, and try to change the state of the consumer group.
